FIELD DENSITY TEST APP-SAND REPLACEMENT METHOD MEDIUM
Model Number : TM-162M

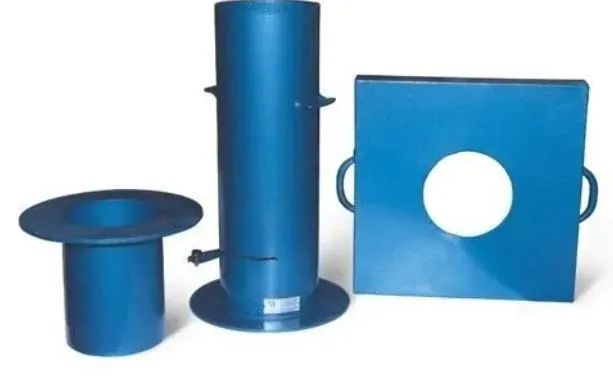

The complete apparatus consists of Medium size sand pouring cylinder. 165mm dia fitted with Conical funnel and shutter, cylindrical calibration container, Internal dia 150mm and internal depth 150mm fitted with a flange, metal tray 450 mm square and 50 mm deep with a 200 mm dia hole in the centre,
FIELD DENSITY TEST APP VARIETY
The complete apparatus consists of Medium size sand pouring cylinder. 165mm dia fitted with Conical funnel and shutter, cylindrical calibration container, Internal dia 150mm and internal depth 200mm fitted with a flange, metal tray 450 mm square and 50 mm deep with a 200 mm dia hole in the centre, as per IS:2720 (Part - 28) Without Excavating tools, Glass Plate, Electronic Balance, Metal containers, Standard Sand, Rapid Moisture meter, Laboratory Oven etc. which are essential for the complete test.
| Overall Dimensions | 370 X 440 X 520 (L X W X D) mm |
|---|---|
| Net weight (in kg) | 11.7 kg |
