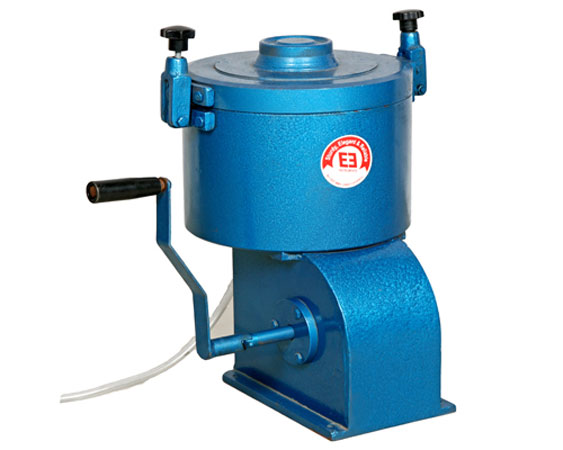

BITUMEN EXTRACTOR-HAND OPERATED-
Model Number : TM-071H
Complies with following International Standards - ASTM D 2172, AASHTO T 58, T 164. Application : This is used for a quantitative determination of bitumen in hot mix paving mixtures and pavement samples. Detailed specification as follows:
BITUMEN EXTRACTOR VARIETY
Construction Details:
The centrifuge extractor is a safe, portable model of sufficient size for quick and accurate determination of bitumen, corrosion-resistant model which can be used both in the field and the laboratory. It consists of removable cast aluminum rotor bowl mounted on a vertical shaft. A filter paper disc is pressed in between the nut. The bowl assembly is enclosed in a housing mounted on a cast aluminum body. The gears operate in oil bath with splash lubrication.
Weight : 40 kg Approx.
Essential Accessories At Extra Cost:
- Filter paper - Box of 100
- Electronic Balance ( Capacity : 6000 gms, Accuracy : 0.1 gm)
- Benzene or Toluene to be procured locally.
- Animated Video CD with Commentary on the Working of the Instrument can be Provided at Extra Cost
- The Video CD Covering Demonstration of 15 Different Instrument on Bitumen & Aggregate Testing can be Provided at Discounted rate
| Overall Dimensions | 380 X 380 X 450 (L X W X D) mm |
|---|---|
| Weight (Approx.) | 49 Kgs Approx. |
