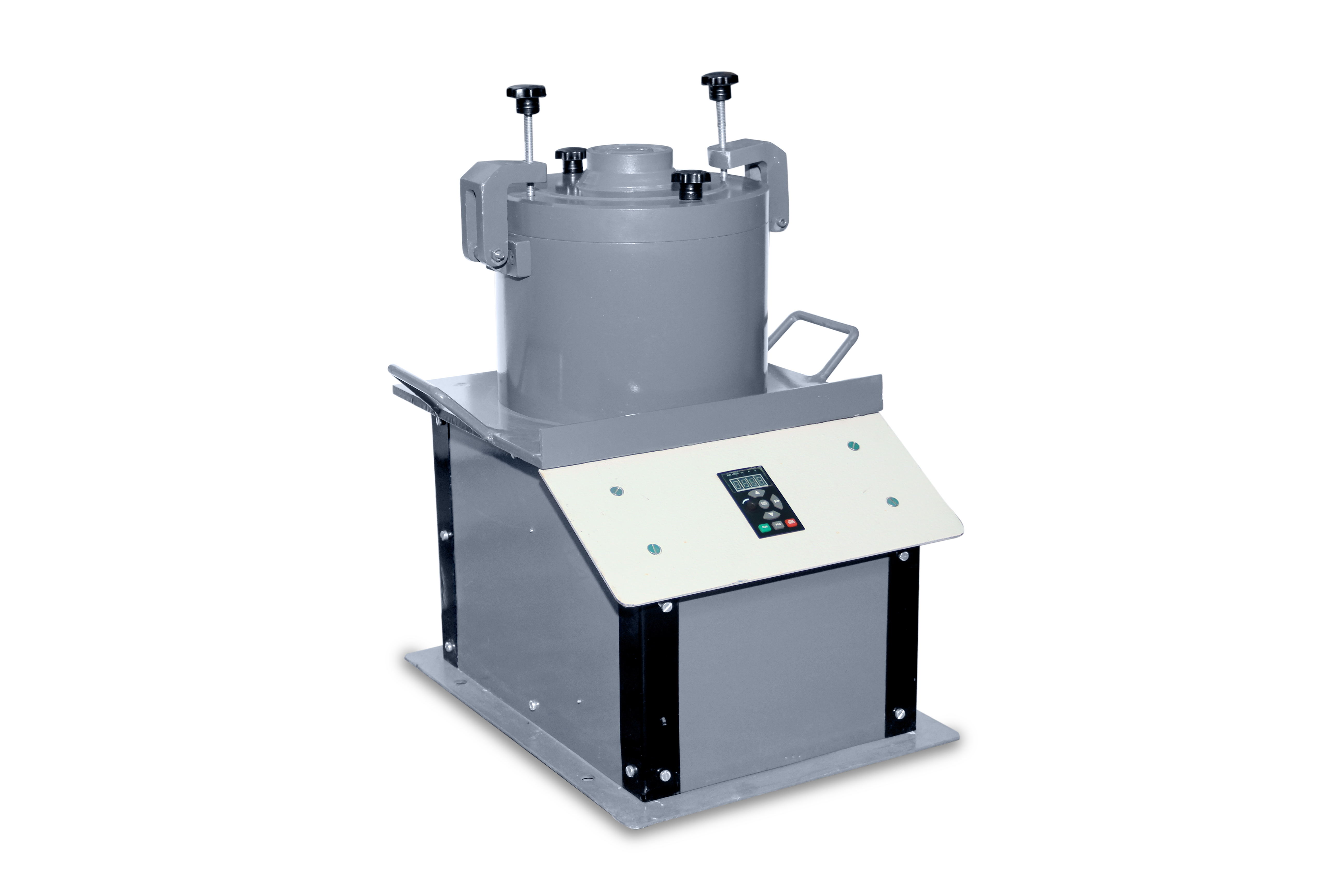

BITUMEN EXTRACTOR - MOTORISED WITH VARIABLE SPEED WITH DIGITAL RPM INDICATOR
Model Number : TM-071M
SPECIAL MODEL WITH AC MOTOR AND DRIVE : This model facilitates precise speed control and vibration free smooth operation. Speed variation up to 3600 RPM. Complies with following International Standards - ASTM D 2172, AASHTO T 58, T 164. Electronic weighing Balance, Filter Paper and solvent are available at extra cost.
BITUMEN EXTRACTOR VARIETY
Compliance Standards
ASTM D 2172, AASHTO T58, AASHTO T164, EN 12697-1,IS 19008:2023
Application:
This is used for a quantitative determination of bitumen in hot mix paving mixtures and pavement samples.
Construction Details:
The centrifuge extractor is a safe, portable model of sufficient size for quick and accurate determination of bitumen, corrosion-resistant model which can be used both in the field and the laboratory. It consists of a removable cast aluminum rotor bowl mounted on a vertical shaft. A filter paper disc is pressed in between the nut. The bowl assembly is enclosed in housing mounted on a cast aluminum body. The gears operate in an oil bath with splash lubrication. Supplied with Digital RPM Indicator.
Essential Accessories At Extra Cost:
Electronic Balance (Capacity : 6000 gms, Accuracy : 0.1 gm) Filter Paper and solvent (Trichloroethylene)
Click here for working video: https://www.youtube.com/watch?v=nuI4w9dBLxc
| Motor Capacity | 0.5 hp |
|---|---|
| RPM | 3600 |
| Speed (rpm) | Controllable with the help of the regulator |
| CAPACITY IN | 1.5 kg - for aluminium bowl |
| Power | 220 volts, Single phase |
| Overall Dimensions in Inches (L x W x H) | 14" X 19" X 24" |
| Weight (Approx.) | 39.750 Kgs Approx. |
| MATERIAL OF CONST. | Bowl made of aluminium and other parts made of MS |
