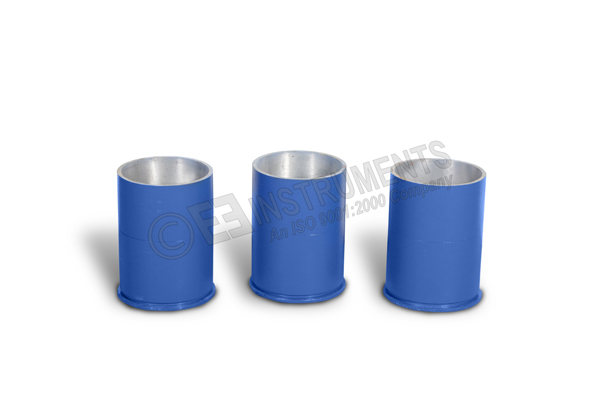

MARSHALL MOULD-MODIFIED-(6" DIA)

Compliance Standards:

ASTM D5581.

The complete set consist of Marshal Mould, extension collar and base plate, conforming to the details shown in Fig. 1 of ASTM D5581.

Marshal Mould

1. Material: Steel tubing
2. Nominal Outside Diameter: 6.5"(165.1 mm)
3. Inside Diameter: 6.000 ± 0.008" (152.4 ± 0.2 mm)
4. Height: 4.5 ± 0.01"(114.3 ± 0.3 mm)
5. Wall Thickness: Approx. 0.25"(6.4 mm)

Base Plate

1. Diameter: 6.5"(165.1 mm)
2. Thickness: 0.50 ± 0.01" (12.7 ± 0.3 mm)
3. Flatness: The top surface will be true and machined flat to ensure even specimen compaction.

Extension Collar

1. Outside Diameter: 6.5 ± 0.03"(165.1 ± 0.8 mm)
2. Inside Diameter: 6.250 ± 0.020"(158.75 ± 0.5 mm)
3. Height: 3.25 ± 0.01"(82.6 ± 0.3 mm)
4. Fit: Collar will fit snugly into the mould without clearance
