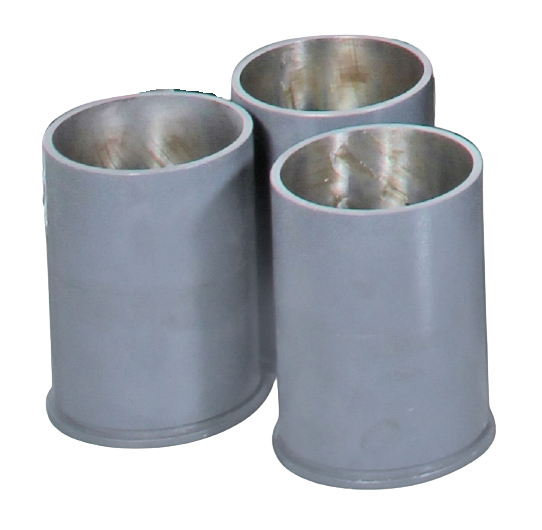

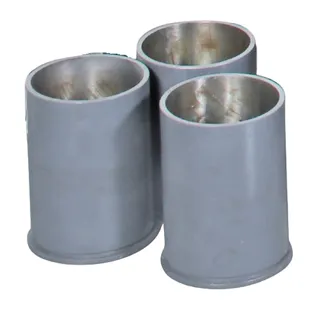

MARSHALL MOULD-STANDARD-(4" DIA)
Model Number : TM-041-1S
The 4-inch Marshall Mould is designed for the preparation of Marshall specimens and conforms to ASTM D1559, AASHTO T245, EN 12697-10, and ASTM D6926 standards. It is manufactured from high-quality seamless steel and finished with a durable powder coating to ensure long-term corrosion resistance. The mould is suitable for use with both automatic and manual compactors. The set includes a mould body, collar, and base plate for accurate and consistent sample preparation.
MARSHAL MOULD VARIETY
Compliance Standards:
ASTM D1559, AASHTO T245, EN 12697-10, ASTM D6926
Technical Specifications:
- Used to produce the Marshall specimens with automatic or manual compactors
- Manufactured from seamless steel
- Powder coated to prevent corrosion
- Mould consists of Mould body, collar and Base plate
- Size : 101.6mm Dia x 76.2mm Height
| Overall Dimensions in Inches (L x W x H) | 5 x 5 x 6.5 |
|---|---|
| Weight (Approx.) | 3.150 Kg |
