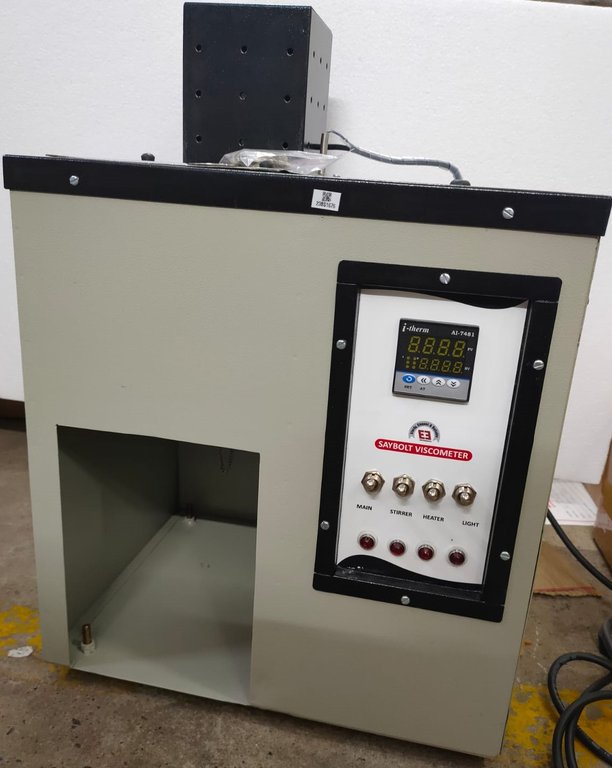

SAYBOLT VISCOMETER - WITH DIGITAL CONTROLLER AND MOTORISED STIRRER - ASTM D88

SAYBOLT VISCOMETER - WITH DIGITAL CONTROLLER AND MOTORISED STIRRER - ASTM D88

Model Number : TM-048DM

Electrically heated model complete with One saybolt tube and electrical control panel. Supplied without Saybolt viscosity Flask, Filter funnel, withdrawal tube and thermometer set which should be ordered separately.

CONTROLLING SYSTEM

Complies with International Standards:

IS:3117-2019/ ASTM D88, AASHTO T72


Construction Details:

  1. The apparatus consists of stainless steel bath with oil cup which is centrally placed in a water bath.
  2. The bath has a lid, which contains a water cooling tube, thermometer socket and a straight heater.
  3. Temperature is controlled by PID Digital Temperature indicator cum controller.
  4. Stirring is done by FHP motorized stirrer.
  5. A thermometer can also be inserted into the cup cover to cross check the Digital controller. (available at extra cost)
  6. Two jets - One Universal (1.765 mm) OR One Furol (3.150 mm) can be screwed to the cup by a handle.
  7. Entire assembly works on 220 Volt, 50 Hz, Single phase, AC Supply


Following parts and accessories will be the part of standard supply:

  1. Main Frame               :   01 No
  2. Stainless Steel Bath         :   01 No
  3. Thermometer Support      :  01 No
  4. Universal and Furol Orifice   :  01 No each
  5. Orifice wrench             :  01 N0
  6. Power Cord                :  01 No
  7. Operation Instruction Manual  : 01 No


The Following accessories are available at extra cost

  1. ASTM/IP Glass Thermometers
  2. Digital Stop Watch (Essential accessory)
  3. Withdrawal Tube
  4. Strainer for Filtering
  5. Flask - 60 ml (Essential accessory)
