SAYBOLT VISCOMETER - WITH ENERGY REGULATOR - FOR EMULSIFIED BITUMEN TEST-

SAYBOLT VISCOMETER - WITH ENERGY REGULATOR - FOR EMULSIFIED BITUMEN TEST-

Model Number : TM-048E

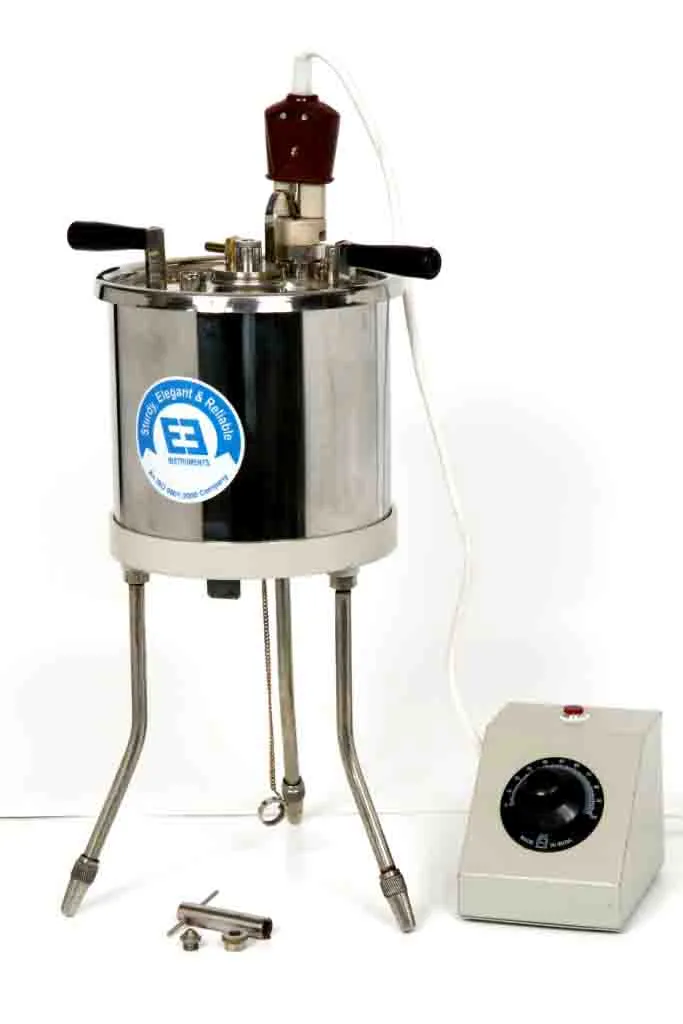

As per ASTM D 88/IS 3117-2019. The apparatus consists of stainless steel bath with oil cup which is centrally placed in a water bath. The bath has a lid which contains a water cooling tube, two handles with two stirring blades, thermometer socket and a straight heater. Stirring is done by turntable arrangement. Supplied without strainer, withdrawal tube, Glass Thermometers and glass wares. Detailed specification as follows:

CONTROLLING SYSTEM

Complies with International Standards:

IS:3117-2019/ ASTM D88, AASHTO T72


Construction Details:

  1. The apparatus consists of stainless steel bath with oil cup which is centrally placed in a water bath.
  2. The bath has a lid, which contains a water cooling tube, thermometer socket and a straight heater.
  3. Temperature is controlled by PID Digital Temperature indicator cum controller.
  4. Stirring is done by FHP motorized stirrer.
  5. A thermometer can also be inserted into the cup cover to cross check the Digital controller. (available at extra cost)
  6. Two jets - One Universal (1.765 mm) OR One Furol (3.150 mm) can be screwed to the cup by a handle.
  7. Entire assembly works on 220 Volt, 50 Hz, Single phase, AC Supply


Following parts and accessories will be the part of standard supply:

  1. Main Frame               :   01 No
  2. Stainless Steel Bath         :   01 No
  3. Thermometer Support      :  01 No
  4. Universal and Furol Orifice   :  01 No each
  5. Orifice wrench             :  01 N0
  6. Power Cord                :  01 No
  7. Operation Instruction Manual  : 01 No


The Following accessories are available at extra cost

  1. ASTM/IP Glass Thermometers
  2. Digital Stop Watch (Essential accessory)

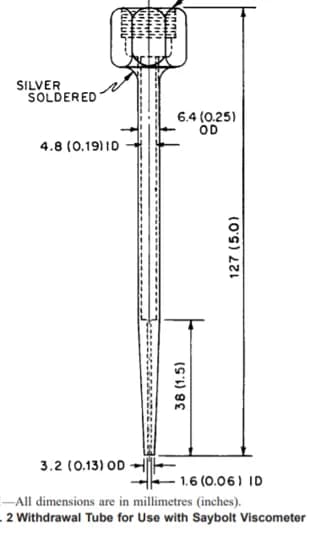

  3. Withdrawal Tube
  4. Strainer for Filtering
  5. Flask - 60 ml (Essential accessory)
