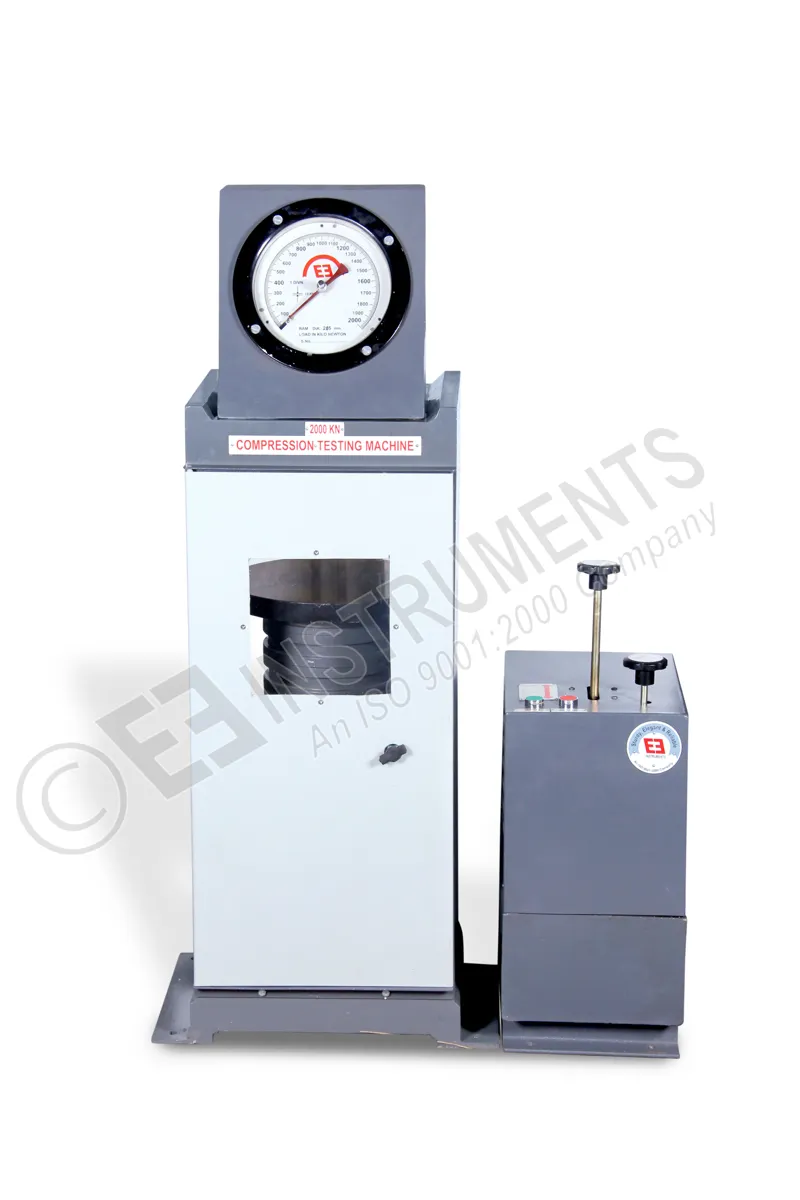

COMPRESSION TESTING MACHINE - 1000 KN-ANALOG - SINGLE GAUGE
Model Number : TM-042A.1000.1
Compliance with following international standards - IS 516, IS 14858. Detailed specification as follows:
NUMBER OF GAUGE
Compliance with following international standards:
IS 516, IS 14858
Salient Features:
- Aesthetically designed unit
- The electric pumping unit is fixed with a micro?switch to switch off the motor automatically as the load on the machine approaches the rated capacity.
- The unit is equipped with a 8" dia pressure gauges with maximum red pointer.
- Four column high stiffness and high stability fully welded construction of the loadframe.
- Construction Details
- The compression testing machine consists of separate pumping unit and loading unit. Detailed descriptions of both the devices are narrated below.
Loading Unit
- The upper platen has got a self aligning action and is attached to a rigid cross head plate.
- The lower platen rests on the jack ram and is positioned with the help of a centering pin.
- Loading is accomplished by upward movement of lower platen.
- A dust cover is provided on the jack to prevent any dust from going into the cylinder.
- A spacer with a centering locating pin is provided to test small specimens.
- The lower and upper platens of the machine are hardened ground and polished.
Pumping Unit
- The pumping unit is a separate unit connected to the jack by means of a high pressure hose pipe.
- A junction box is suitably fixed to connect the motor to the mains through a push button starter.
- Calibrated against N.P.L. Tested Master Gauge or Proving Ring.
- A max red pointer is provided to facilitate taking readings after failure of the specimen.
- The pressure gauge is fixed at an Angle for easy readability.
Scope of supply:
- High strength rigid structure (Loading Frame)
- Pumping unit (Oil source cabinet)
- Pressure gauge
- Pair of compression platens
- High pressure hose pipe
| Capacity | 1000 Kn |
|---|---|
| Platen size in mm | 200 mm dia |
| Ram Dia in mm | 165 mm |
| Ram Travel in mm | 50 mm |
| Vertical daylight in mm | 300 mm |
| Horizontal daylight in mm | 300 mm |
| Weight approx in kg | 356 kg |
| Platen hardness | More than 550 Vickers hardness |
| Electric Motor | 1 HP, single Phase |
| Operation on | 220 V AC single Phase. |
| Least count | 0.5% of the full load |
| Pumping | Motorized |
| Pump Speed | Dual speed |
| Motor | Induction Motor |
| Reading | Analog |
| Accuracy | ± 2% |
| Release valve operation | Required |
| Auto stop after failure of specimen | Not available, need to stop the machine manually |
| Auto Release of Pressure after specimen failure | Not Available, Need to release pressure manually after the completion of test |
| Calculation of result | Manual |
| Holding of Max.Load | Available |
| Pace Rate or Rate of Loading indication | Not Available |
| Operator skill to control Pace Rate | Not Applicable |
| Bar Graph | Not Available |
| Multi Channel operation | Not Available |
| Load indication and Control | Manual |
| Saving of records | Not Available |
| Pen drive slot | Not Applicable |
| Real time graph | Not Applicable |
| Printer interface (Direct connectivity to printer w/o computer) | Not Applicable |
| Computer operation software and data Acquisition software | Not Applicable |
| Displacement controlled operation | Not Available |
| Modulus of Elasticity Calculation | Not Available |
| Flexural attachment | Possible, all calculations will be made manually |
| Splitting Tensile Test | Possible but manual calculation required |
| LAN Connectivity | Not Available |
| Auto internal Calibration without proving ring | Not Available |
| Piston over travel safety cut off | Not Available |
| Over load safety cut off | Available |
| Shot circuit protection | Available |
