SPLITTING TENSILE TESTING MACHINE FOR PAVER BLOCK
This instrument is used to measure the splitting tensile strength of the paver block as per IS code 15658-2021/EN 1338

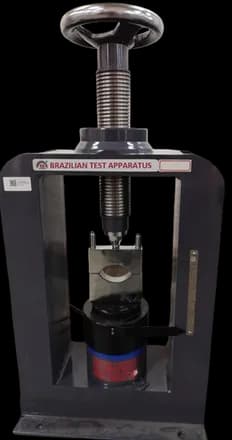

BRAZILIAN TEST APPARATUS AS PER IS : 10082 (1981)
As per IS : 10082 (1981). A loading frame, 100kN Capacity, having a base and a cross head joined together with two solid pillars with nuts. On the base, a 100kN hydraulic jack is fixed between the pillars & a heavy duty pumping unit and oil reservoir on the side. A 100kN capacity pressure gauge is fixed to the jack for indicating the load on the specimen. An operating handle for the jack is also provided. One Brazilian Attachment for 'NX' size core size specimen with thickness half the diameter is supplied as a standard. Digital version also available

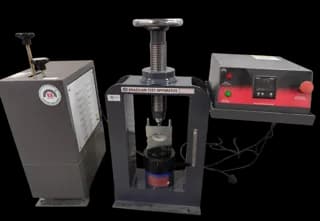

BRAZILIAN TEST APPARATUS- DIGITAL
As per IS : 10082 (1981). It is for conducting Brazilian Test on 50 mm diameter samples to 100 mm diameter samples. Loading jaws for 60 X 30, 70 X 35, 80 X 40, 90 X 45 and 100 X 50 mm samples, to be purchased separately. The Instrument as per ASTM D3967 is also available.

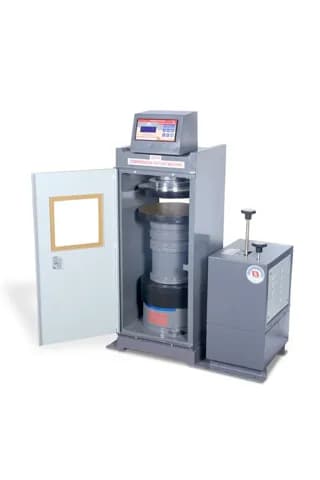

DIGITAL UNCONFINED COMPRESSION TESTER FOR ROCK - IS 9143
The test provides critical input for geotechnical design, rock engineering, and mining operations by quantifying the rock's load-bearing capacity. Capacity available 500KN. Consist of a Load frame and a motorized pumping with digital load indication. Platens as per ASTM 2938 available at extra cost. As per IS:9143/ ASTM D7012/ ASTM D2938/BS EN 1926.
MODULUS OF ELASTICITY FOR ROCK / CONCRETE
The modulus of elasticity (or Young's modulus) of rock is an important parameter in rock mechanics, indicating the rock's ability to deform elastically under load. The modulus of elasticity is typically determined during an unconfined compression test by measuring axial strain under applied stress.Complete with 500 KN Automatic Pace Rate Control machine with attachment for Digital Readout of Modulus of elasticity for rock along with determination of Poisson's ratio along with a displacement sensor
POINT LOAD INDEX TESTER-HAND OPERATED
As per IS 8764. It consists of a load frame for applying loads up to 100 KN, on which a manual hydraulic jack is mounted. The instrument accepts core specimens up to 4” (101,6 mm) diameter which are loaded by two cone shaped points. The applied load is measured by with Two Pressure Gauge of 25 KN and 100 KN. With NABL Calibration at extra cost. Motorized version also available : Price on request.

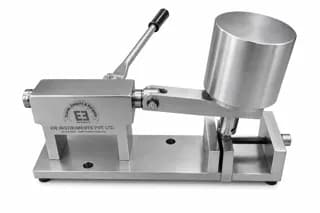

CERCHAR ABRASIVITY INDEX TEST ON ROCK SAMPLE - ASTM D7625-10
Abrasively Index Test on Rock Sample - ASTM D7625-10 (Cerchar Abrasivity Index ) Supplied without Microscope. Supplied with 10 Nos. stylus

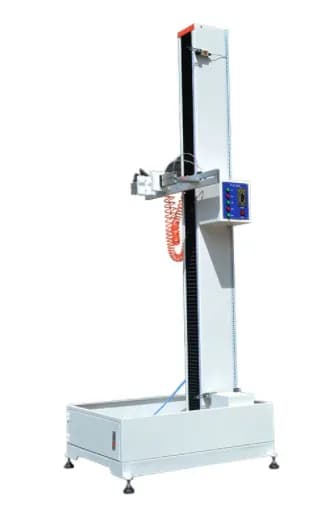

ELECTRIC BALL DROP IMPACT TESTER - EN 14617 (Part 9)
Determination of impact resistance of Agglomerated stone as per EN 14617 Part 9

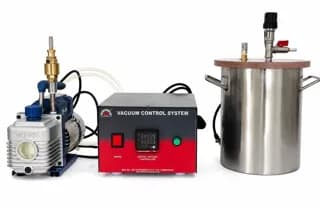

POROSITY AND DENSITY DETERMINATION OF ROCK - IS:13030
Porosity and Density Determination of Rock Using Saturation and Caliper Techniques. The saturation and caliper techniques are commonly used to determine the porosity and density of rocks. These methods provide detailed insights into the rock's physical properties, which are crucial for various applications, including geology, civil engineering, and petroleum engineering. As per IS:13030-1991(R.A.2021)

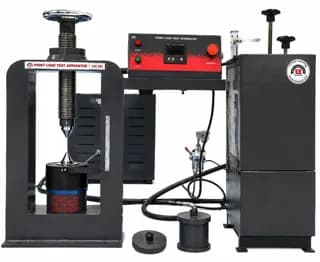

DIGITAL POINT LOAD INDEX TESTER
As per ASTM D5731, IS:8764. Capacity 100 KN X 0.01 KN, with Calibration.

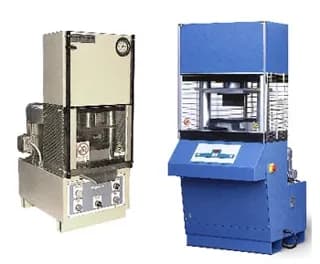

TRIAXIAL TESTING MACHINE FOR ROCK
The Rock Triaxial Testing Machine is designed for comprehensive testing of rock specimens under static and dynamic loading conditions. Conforming to international standards, it allows for Triaxial, Unconfined, and Indirect Tensile tests, making it an ideal choice for geotechnical, mining, and rock mechanics applications.
CEMENT / FLY ASH SAMPLER - FOR BULK SAMPLING
The slotted tube-sampler will be between 1.5 to 1.8 meter long and about 35 mm in outside diameter and will consist of two polished brass telescopic tubes with registering slots which are opened or closed by rotation of the inner tube; the outer tube being provided with a sharp point to facilitate penetration. Extremely useful for sampling from Bulk Cement and fly ash ponds.

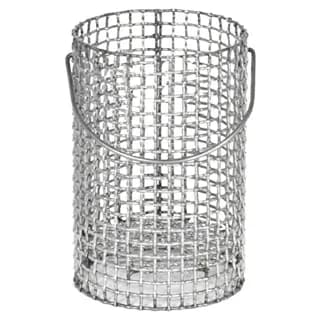

DENSITY BASKET AS PER ASTM D6390 - DRAIN DOWN TEST
Standard basket meeting the dimensions shown in Fig. 1 as per ASTM D6390 / as per IRC SP 79 2008. Dimension is mentioned in above mention code "annex-C" Page no. 16. The basket is constructed using standard 6.3 mm sieve cloth. Standard basket meeting the dimensions shown in Fig. 1. The basket is constructed using standard 6.3 mm sieve cloth as specified in Specification E 11. 108 ± 10.8 mm dia X 165 ± 16.5mm height. Basket bottom will be of 25mm ± 2.5mm height.
BENDING STRENGTH TESTING MACHINE FOR CONCRETE KERBS - IS 5758:2020
As per IS : 5758 (2020) with TOUCH SCREEN control panel and automatic pace rate control to control the rate of loading. Capacity 50000 Kgf. Least count 0.1 Kgf. with adjustable test span to accommodate different size tile specimen Direct reading of BENDING STRENGTH in KN or Kgf. Working on 230 V AC single Phase 60 Hz. PC connectivity with software available at extra cost.
BENDING STRENGTH TEST APPARATUS - JIS A5372
The Bending Strength Test (JIS A5372) evaluates the flexural strength of construction materials, such as ceramics, tiles, and concrete, to determine their durability and performance under bending forces. Electro-hydraulic Design, quite and vibration free operation. Automated or computer-controlled load application for consistency and precision in load rate. PC connectivity with software available at extra cost.

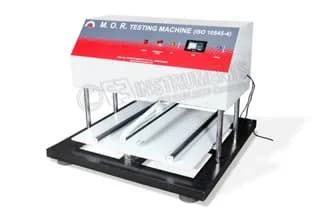

WET TRANSVERSE STRENGTH TESTING MACHINE IS 13801-ANNEX F
The equipment complies with the requirements of: IS 13801 – Annex F and IS 1237 – Annex F. Also available as per ASTM C1167 (Roofing Tiles – Transverse Strength) and EN 538 (Clay Roofing Tiles – Flexural Strength)

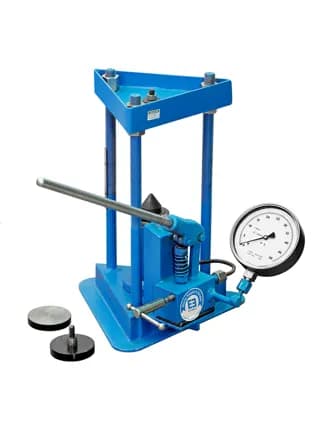

HYDRAULIC (KBR PRESS) - 15 TON - AUTOMATIC
This is electrically operated version of the manual press. The pumping is done by gearmotor drive. Simply press a button & it will start building pressure & will stop automatically at set pressure by means of a pressure switch.
HYDRAULIC (KBR PRESS) - 15 TON - MANUAL
A Complete Laboratory hydraulic press producing a force of about 15 tones to make high quality FTIR Kbr pellet press, XRF pellet press & Thin Film Press applications. Typically used by R&D & QC labs for various pelleting applications for IR/FTIR/XRF Solid Sampling.
HYDRAULIC (KBR PRESS) - 25 TON - MANUAL
Complete Laboratory hydraulic press producing a force about 25 tones use to make high quality. Without Die set. Die set available at extra as per the application. Motorized version also available.
HYDRAULIC (KBR PRESS) - 40 TON - MANUAL
Complete Laboratory hydraulic press producing a force about 40 tones use to make high quality Pallets

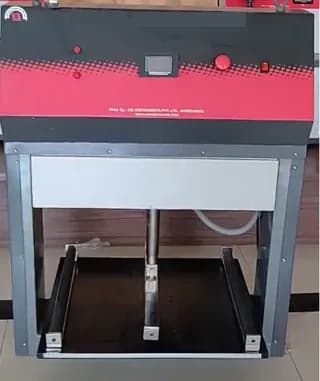

BENDING STRENGTH TEST APARATUS - FOR BOX CULVERT
The bending strength of concrete culvert. Electro-hydraulic Design, quite and vibration free operation. PC connectivity with software available at extra cost.

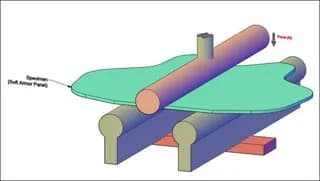

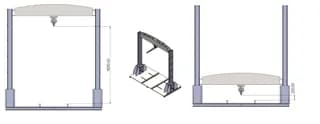

THREE POINT BENDING FIXTURE -FOR SOFT BALLISTIC ARMOR
Fixture to check the deformation and three point bending flexibility of Soft Balistic Armor. (Tensile Testing Machine is the primary Instrument for this testing)

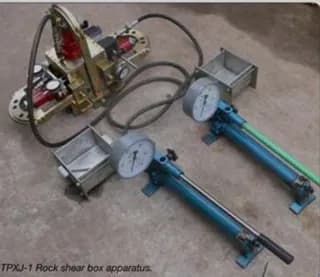

ROCK SHEAR BOX APPARATUS
The direct shear test assesses the shear strength parameters of rock under various normal stresses. It provides data on the cohesion and internal friction angle of the rock, essential for understanding rock behavior under different loading conditions.

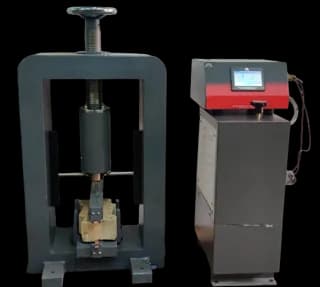

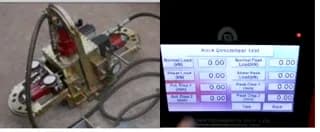

ROCK SHEAR BOX APPARATUS - DIGITAL
The rock shear apparatus test, as per ASTM D5607 and ISRM (International Society for Rock Mechanics), evaluates the direct shear strength of rock specimens, including intact rock and rock discontinuities. Electronic Model with Data logging facility.
