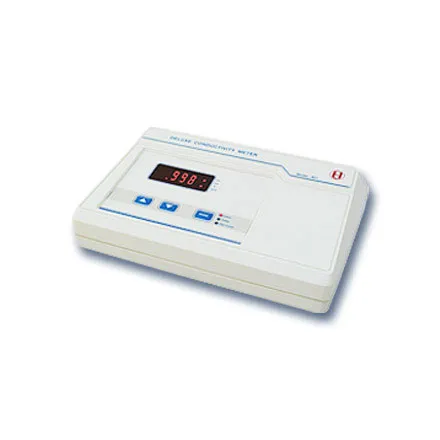

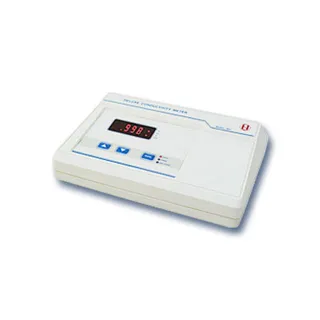

CONDUCTIVITY METER-TABLE MODEL-ATC-601E-
Model Number : 601
Deluxe Conductivity Meter using latest microcontroller, Auto Ranging (5 ranges from 200μS to 1000mS), auto temperature compensation, auto cell constant measurement, touch keys along with Conductivity Cell and Temperature Probe. (Table Model). Detail Specification as per following page.
CONDUCTIVITY METER TYPE
Features:
- Microcontroller Based
- Highly Stable & Accurate
- Auto Ranging Facility
- Cell Constant Measurement and Adjustment Facility
- 3½ Digit Display
- Automatic Temperature Compensation Facility
| Display | 3½ Digit LED |
|---|---|
| Measurement | Conductivity & Temperature |
| Ranges | Five Ranges |
| 0 – 200 ?S/cm | |
| 0 – 2 mS/cm | |
| 0 – 20 mS/cm | |
| 0 – 200 mS/cm | |
| 0 – 1000 mS/cm | |
| Range Selection | Automatic in 5 Ranges |
| Accuracy | |
| Cond. | ±0.5 % FS ± 1Digit |
| Temp. | ±0.1°C ± 1Digit |
| Temperature Compensation | |
| Auto | 0 to 100 C |
| Manual | 0 to 100 C |
| Cell Constant | Adjustable on Digital Display |
| Measuring Cell | Platinum DIP Type |
| Auto Cell Constant Measurement | Available |
| Resolution | |
| Cond. | 0.1 ?S/cm |
| Temp. | 0. 1°C |
| Power | 12V DC using Adapter 110 to 250V AC,50 Hz |
| Dimensions | 270x202x80 mm (lxbxh) |
| Weight | 0.8 Kg approx. |
| Accessories | Conductivity Cell, Operation Manual, Dust Cover, Cell Stand, Temperature Probe |
