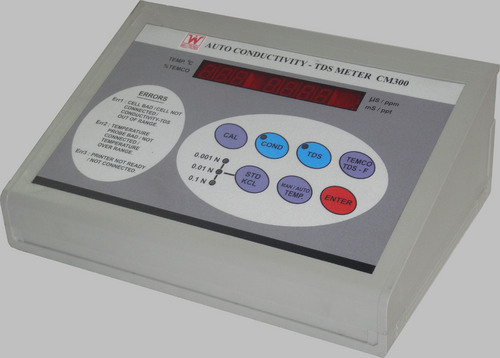

CONDUCTIVITY METER-TABLE MODEL - MICROPROCESSOR BASED-ATC-CM - 300-
Model Number : CM 300
Microprocessor based .With Conductivity Cell CC=1.0 only & Temperature Probe. Detailed technical specification mentioned under description
CONDUCTIVITY METER TYPE
Features :
- Microprocessor based system for speed and accuracy.
- Wide range coverage.
- Incorporates a solid state controlled sine wave oscillator.
- Automatic selection of optimum frequency 100 Hz or 1 KHz.
- Automatic recognition of cell constant.
- Automatically checks the CELL behaviors, error indications with buzzer sound, and alerts you to problems.
- User selectable temperature co‑efficient.
- Automatic & Manual temperature compensation.
- The unit retains calibration points even when there is a power failure or the unit is switched off, Battery backup memory.
- Analysis Mode, finds out temp. co‑efficient of unknown solution.
- It has minimum panel controls making it very easy to operate.
- Temperature read‑out with Conductivity value for complete sample information.
- No complex manual adjustment and calibration.
- Soft touch key operation with beep sound.
- Centronics printer interface for hard copy (optional),with programmable sample number & time interval.
- Computer RS232 serial port (optional).
- The unit is housed in a compact and light weight attractive one peace fiber glass cabinet.
| Conductivity Range | 0.1uS to 200mS |
|---|---|
| Relative Accuracy | + 1 % of the F.S, + 1 digit |
| Display | 7 digit, 7 segment 0.5 ” RED LED,4 digit for conductivity, 3 digit for temperature/Tempco, with decimal point and unit annunciation by LED. |
| Cell Constant | Acceptable from 0.1 to 5. |
| CELL requirements | Automatic |
| Temperature Range | 0°C to 100°C (Auto /Manual) |
| Temperature Coefficient | Programmable 0.0 to 9.9% per Deg. cent. |
| TDS-factor | Programmable 0.00 to 9.99. |
| Power Supply | 230V AC , +10%, 50Hz. |
| Accessories Supplied | Conductivity cell, Temperature Probe, KCl Powder for Std. Solution, Cell Clamp/stand, Dust cover, Instruction manual. |
| Dimensions | 320mm(w) x 280mm(D) x130mm(H) |
| Weight | 2.5 kg. Approx. |
