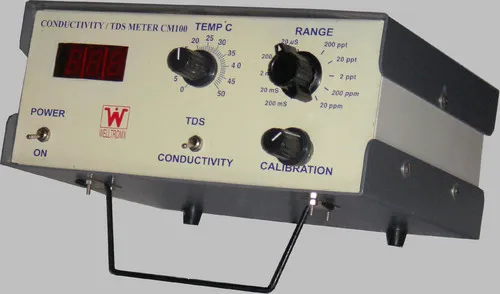

CONDUCTIVITY METER-TABLE MODEL-MTC-CM-100-
Model Number : CM 100
Supplied complete with Conductivity Cell of 1.0 cell constant, instruction manual, stand/clamp, Dust cover. Facility to measure TDS is available at an extra cost of Rs.2000.00
CONDUCTIVITY METER TYPE
Construction details:
The unit is housed in a compact and pleasing two tone colour Cabinet. It is designed for taking accurate conductivity measurement. The unit is operated from AC mains. Solid state circuitry and regulated power supply ensures stable operation even with variation in voltage. Precision is ensured by using very low temperature co‑efficient components, latest IC Regulators and good circuit design.
Supplied complete with Conductivity Cell of 1.0 cell constant, instruction manual, stand/clamp, Dust cover.
Note : 1 Mho = 1 siemens (S)
| Range | 0‑20 uS / 0‑200 uS / 0‑2 mS / 0‑20 mS / 0‑200 mS |
|---|---|
| Display | 3 Digits - 7 segments LED |
| Selector Switch | For Conductivity or TDS Display (Optional at extra cost) |
| Relative Accuracy | ± 1% of full scale ± digit |
| Conductivity Cell | Approximately 1 cell constant |
| Temperature Compensation | 0 ‑ 50 °C |
| Temperature Coefficient | 2% |
| Power | 230 V +/‑ 10%, 50 Hz |
| Weight | 3.5 kg |
| Dimensions | 230 mm (W) x 230 mm (D) x 115 mm (H) |
