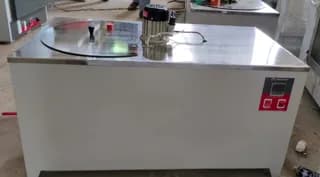

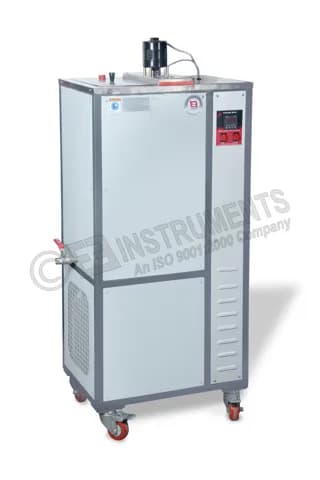

ACCELERATED CURING TANK
Accelerated Curing Tank designed to accommodate concrete cube moulds (capacities ranging from 3 to 36 cubes of 15 cm and various sizes), suitable for cement mortar cube moulds. Provides accelerated curing by boiling water method up to 100 ± 2°C and warm water curing at 55 ± 2°C, with provision for normal curing at 27 ± 2°C. Conforms to IS: 9013 and IS: 516 standards.
FLUX OVEN - 50 KG - SS - 50 TO 400° C
Double walled, inner chamber MS, Outer CRC with paint , 100 mm thick glass wool insulation , air heaters placed at both side for uniform heat distribution Temp. Range. 50˚C to 400˚C , Auto tune Dual Display Digital, forced air circulation, Working on 440 Volts AC three Phase.

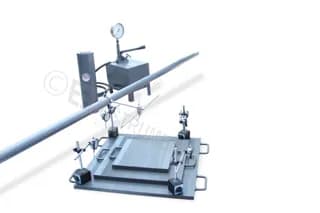

PLATE BEARING TEST APPARATUS-IS 1888
As per IS:1888-1982 (R.A.2021), Supplied with Hand operated Hydraulic Jack 500 KN, High pressure flexible pipe of 5 meter length, Ball and socket arrangement, Magnetic base -4 Nos, Dial Gauge 0.01 X 25 mm - 4 Nos, Datum Bar, Grooved square M.S.Plates of 60 cm, 45 cm and 30 cm. Load Truss and anchor spikes to be purchased separately
REFLECTANCE METER / WHITENESS METER-
Principles - Whiteness is property of Luminous Objects. Whiteness is measured in terms of diffuse Reflectance, which is the ratio of reflected light measured at 90° after passing through a suitable filter and the incident light that is generally at 45° to the surface of the sample. With 45° Diffuse Reflectance head for whiteness and brightness measurement. This Instrument is Filter less - 2 colors wavelength provided on selectable switch with long life secondary standard.

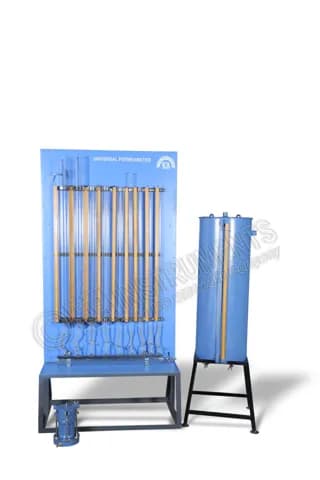

UNIVERSAL OR COMBINATION PERMEAMETER
Consists of one gunmetal mould wooden stand 100 mm dia x 127.3 mm height with extension collar, drainage base, drainage cap, metallic clamping ring, two porous stone for base & top, wooden stand with nine glass tubes of 6 mm, 10 mm, 20 mm, 25 mm, 40 mm, 50 mm, 60 mm, 70 mm & 75mm dia, complete with rubber connecting tube 3 meter long with pinch cock, Air brass tube, rubber stopper, bottom tank of copper with chromium plating with pinch cock.

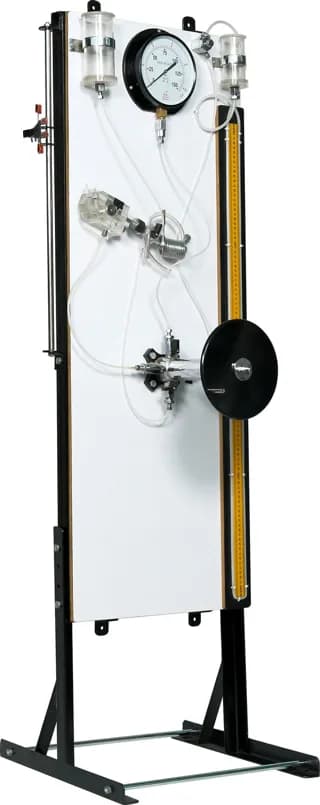

BISHOP PORE PRESSURE APAPRATUS (10KG/CM²)
The Bishop pore pressure apparatus is used in a triaxial test system to accurately measure and control the pore water pressure within the soil sample during testing. It allows precise monitoring of the pore water pressure within the soil specimen, which is essential for determining the effective stress in the soil. Effective stress is critical in soil mechanics as it influences the soil's shear strength, compressibility, and overall behavior under load.

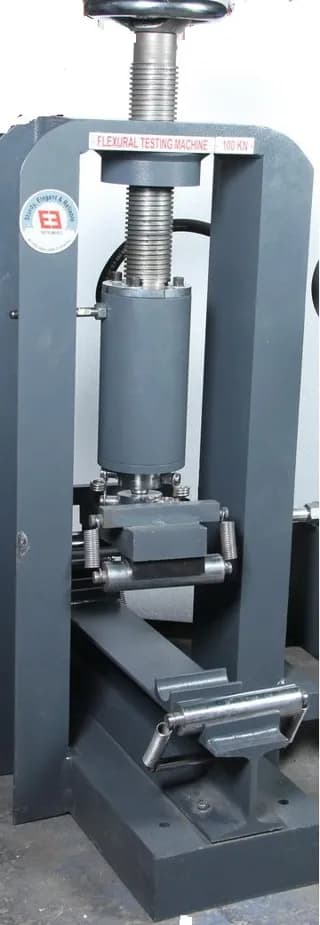

FLEXURAL TEST ATTACHMENT FOR CTM
This is an attachment to be connected to CTM.The CTM should be capable of applying the load at a rate 0.7 N/mm2/min (rate of loading being 4 kN/min for 150 mm specimens and 1.8 kN/min for 100 mm specimens). As per IS 516 (Part 1/Sec 1) : 2021, IS: 9399-1979, BS: 1881-Part 118, ASTM C78
PERMEABILITY MOULD (FOR SOIL) 100MM DIA
The permeability test of soil, as per IS:11209, is intended to determine the coefficient of permeability, which describes how easily water can flow through soil. This parameter is essential for understanding groundwater movement, soil drainage properties, and designing earth structures like dams, retaining walls, and foundations.

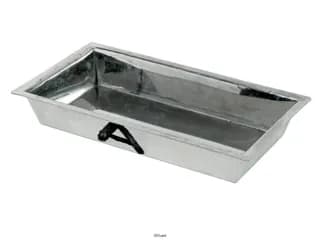

CURING COMPOUND MOULD-ASTM C156-03
To evaluate the effectiveness of liquid membrane-forming curing compounds on concrete surfaces by measuring their ability to retain moisture. Compliance with ASTM C156-03, IS 10080
DEW POINT APPARATUS - S.S.
This is an assembly of special alloy mettalic tube which is fixed in a metallic block & transparent bowl. Block is having inlet connection of compressed air/gas whose dryness has to be measured. A glass Thermometer is used to measure the temp. inside the mettalic tube or a digital indicator is used to measure the temp outside the metallic tube surface (in digital model). Supplied with Glass Thermometer ( -100°C - +50°C x 1°C). Dry Ice Making Machine and CO2 Gas Cylinder is available at extra cost

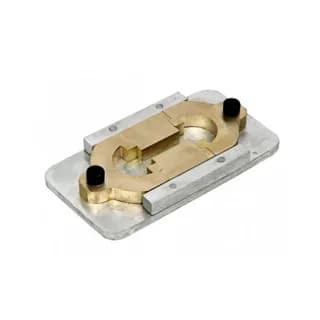

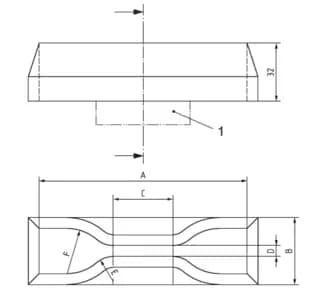

ELASTIC RECOVERY MOULD WITH BASE PLATE
The Elastic Recovery Mould is a precision-engineered testing apparatus designed to evaluate the elastic recovery properties of bituminous materials. Manufactured from high-quality, durable materials, it ensures accurate and repeatable results in laboratory environments. The mould is supplied with a sturdy base plate for enhanced stability during testing, minimizing deformation and ensuring consistent performance. Compliant with international standards including ASTM D6084, EN 13398, and EN 13589, this mould meets stringent quality and dimensional requirements.

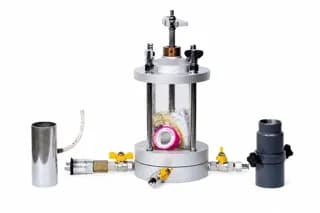

TRIAXIAL CELL - 38MM
As per IS:2720 (Part-XII). Supplied Complete with Accessories Loading pad, Plain discs, Porous Stone, Split sand former, Sheath stretcher, One dozen rubber sheaths, Synthetic Rubber 'O' rings and One Plastic drainage Tube.
