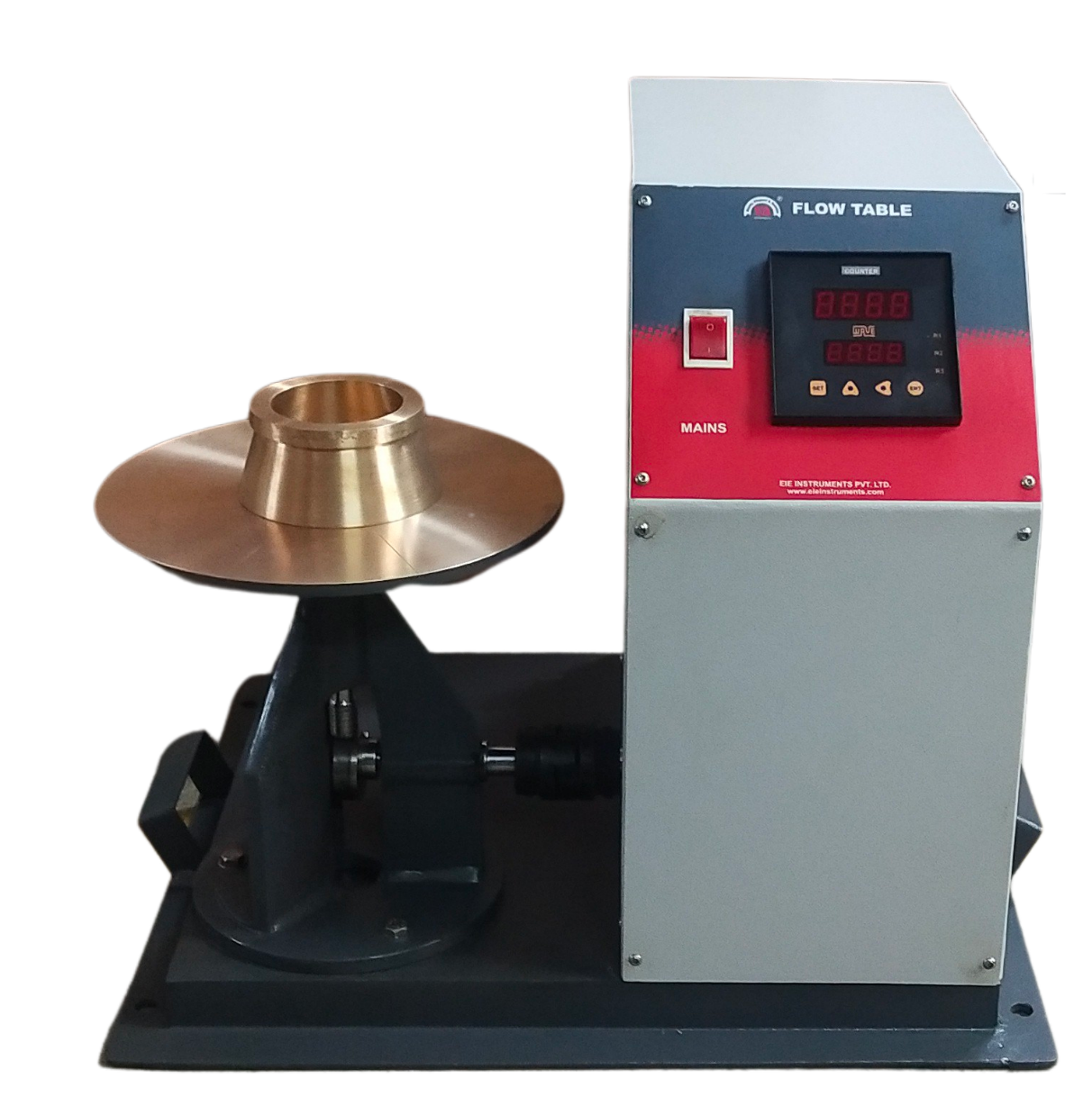

FLOW TABLE (CEMENT)-MOTORISED - 25CM DIA - GUNMETAL TOP - IS 5512

Model Number : TM-80-GM

The flow table consist of a gunmetal table top 250 ± 2.5 mm dia mounted on a rigid stand. The table top is reinforced with equally disposed ribs and allowed to drop through 12 mm by a ground and hardened cam, Complete with mould- 100 mm base dia, 70 mm top dia and 50 mm high. The cam shaft is rotated at the rate of 100 RPM by an electric motor. Suitable for operation on 230 Volts 50 cycles. Single Phase, A.C. Supply. Complete with Digital Counter

FLOW TABLE VARIETY (FOR CEMENT)

1. Main Instrument: Flow Table Assembly

The flow table is constructed with a rigid, integrally cast supporting frame and a circular machined table top.

  1. The table top diameter is 250 ± 2.5 mm, with a finely machined, plane surface free from surface defects.
  2. Flatness of the table surface does not deviate by more than 0.05 mm from a true plane.
  3. The table top is provided with six integral radial stiffening ribs to ensure rigidity and uniform load transfer.
  4. Edge thickness of the table top is approximately 7.5 mm.
  5. The table top is permanently attached to a vertical shaft, mounted perpendicular to the table surface.
  6. The combined mass of the table top and shaft is 4.00 ± 0.05 kg, symmetrically distributed about the shaft axis.

2. Vertical Movement & Drop Mechanism

  1. The table is designed to be raised and dropped vertically through a height of 12 mm.
  2. The drop height is maintained within ±0.1 mm for new tables.
  3. Vertical movement is guided through a precision-fitted vertical shaft, ensuring smooth, repeatable motion.
  4. The shaft-to-frame clearance is controlled to ensure accurate guidance and minimal lateral play.
  5. The table drops freely without rotation, ensuring consistent test action.

3. Cam and Drive System

  1. The lifting and dropping action is achieved through a precision-machined cam mechanism.
  2. The cam profile is a smooth spiral curve of uniformly increasing radius, ensuring gradual lift and controlled release.
  3. Cam tip and contact surfaces are hardened to resist wear and maintain accuracy over prolonged use.
  4. The cam is securely fixed to the cam shaft, preventing slippage during operation.
  5. The flow table is operated by a motor-driven mechanism
  6. The cam shaft operates at approximately 100 revolutions per minute.

4. Supporting Frame

  1. The supporting frame is a rigid cast construction designed to absorb repeated impact without distortion.
  2. The frame incorporates integral stiffening ribs, evenly spaced for structural stability.
  3. The contact surfaces between the table and frame are machined flat, parallel, and smooth to ensure uniform seating at each drop.
  4. The frame maintains continuous 360° contact with the table shoulder at the end of each drop.

Accessory Apparatus :

5. Flow Mould (Cone)

  1. The flow mould is manufactured from metal with a minimum wall thickness of 5 mm.
  2. Internal surfaces are smooth, machined, and free from irregularities.
  3. The top and base surfaces are parallel to each other and perpendicular to the vertical axis.
  4. The mould is provided with an integral collar or flange to facilitate easy and safe lifting.
  5. The mould maintains dimensional stability under repeated use.

6. Circular Shield

  1. A circular shield is provided to prevent mortar spillage on the table surface.
  2. The shield is approximately 250 mm in diameter, with a central opening of approximately 100 mm.
  3. The shield is made of non-absorbing material and is not affected by cement or mortar.

At Extra cost :

1. Tamping Bar

  1. A tamping bar for specimen preparation.
  2. The bar is made of steel, approximately 12.5 mm in diameter.
  3. Length of the tamping bar ranges between 125 mm and 150 mm.
  4. The working end is rounded to ensure uniform compaction.

2. Measuring Caliper

  1. A firm-joint outside caliper is provided for measuring the diameter of the spread mortar.
  2. The caliper ensures accurate and repeatable measurement of flow diameter.
