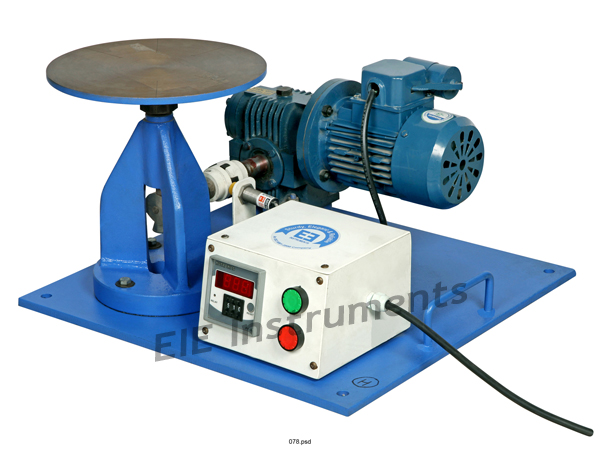

FLOW TABLE (CEMENT)-MOTORISED - 25CM DIA - M.S. TOP - IS 5512
Model Number : TM-80-MS
The flow table consist of a Mild steel table top 250 ± 2.5 mm dia mounted on a rigid stand. The table top is reinforced with equally disposed ribs and allowed to drop through 12 mm by a ground and hardened cam, Complete with mould- 100 mm base dia, 70 mm top dia and 50 mm high. The cam shaft is rotated at the rate of 100 RPM by an electric motor. Suitable for operation on 230 Volts 50 cycles. Single Phase, A.C. Supply. Complete with Digital Counter.
FLOW TABLE VARIETY (FOR CEMENT)
- FOR BUILDING LIMES - HAND OPERATED - 30CM DIA - AS PER IS 6932
- HAND OPERATED - 25CM DIA - GUNMETAL TOP - IS 5512
- HAND OPERATED - 25CM DIA - STEEL TOP - IS 5512
- HAND OPERATED - GUNMETAL TOP - (ASTM C230)
- MOTORISED - (ASTM C230)
- MOTORISED - 25CM DIA - GUNMETAL TOP - IS 5512
- MOTORISED - 25CM DIA - M.S. TOP - IS 5512
- MOTORISED - 30CM DIA - AS PER EN 1015-3
The flow table consist of a Mild steel table top 250 ± 2.5 mm dia mounted on a rigid stand. The table top is reinforced with equally disposed ribs and allowed to drop through 12 mm by a ground and hardened cam, Complete with mould- 100 mm base dia, 70 mm top dia and 50 mm high. The cam shaft is rotated at the rate of 100 RPM by an electric motor. Suitable for operation on 230 Volts 50 cycles. Single Phase, A.C. Supply. Complete with Digital Counter.
| Overall Dimensions | 420 X 620 X 370 (L X W X D) mm |
|---|---|
| Weight (Approx.) | 40 KG |
