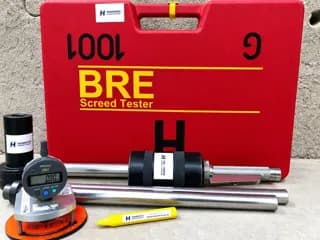

BRE SCREED TESTER WITHOUT DIAL GAUGE
The BRE Screed Tester is designed to measure the soundness of a sand and cement floor screed. The device consists of a 1 m long, cylindrical guide rod, along which an annular weight of 4kg (or 2kg) travels when released. At the bottom of the guide rod the weight strikes the collar of a case-hardened steel anvil which transmits the impact to the surface of the screed. Four successive impact blows on the same spot are sufficient to test the soundness of the screed. The depth of indentation is measured with an electric or mechanical depth gauge. At the end of taking readings, a number of statistical values are then calculated and printed from the data. Guidance is given on the use of the screed tester for testing floating screeds using a 2 kg annular weight in place of the 4 kg weight normally used.

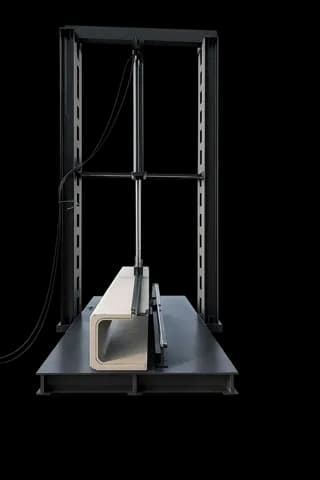

BENDING STRENGTH TEST APARATUS - FOR CABLE DUCT AND COVERS
The bending strength of concrete culvert. Electro-hydraulic Design, quite and vibration free operation. PC connectivity with software available at extra cost.

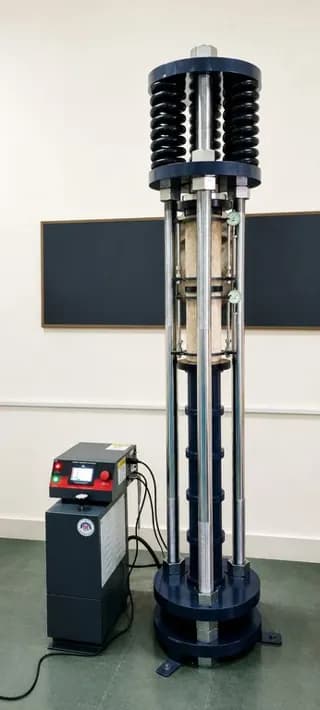

CREEP TESTING MACHINE FOR CONCRETE- 1000KN - ASTM C512
The machine is designed to determine the creep of the concrete cylindrical mold subject to sustain longitudinal compressive load as per ASTM C 512. The test method is limit to concrete in which the max aggregate size does not exceed 50 mm. The machine will be supplied with DAQ for the stain gauge and 10 pieces of stain gauge of Type -BF120-60mm,Resistance- 120ohm ,lead wire -25-30mm. It will also supplied with EPOXY ADHESIVE to paste of the sample and cable to solder the stain gauges.

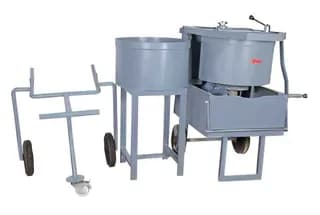

PAN MIXER-60 LTRS-WITH REMOVABLE PAN, TROLLEY AND STAND
Suitable to Cast at least 12 Cube Mould of 15 cm at a Time in single batch. The machine is capable to caste second batch immediately after first batch as the first pan can be removed with trolley and placed on the table. And with the help of second pan, second mix design can be started.

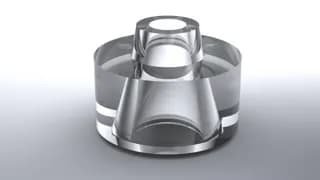

ACRYLIC - SLUMP TEST APPARATUS - MINI
Kantro Mini-Slump Cone, The Kantro layout is widely accepted in research and laboratories to test the fluid flow and rheology of cement paste or mortar. Made of Acrylic, Dimensions of mini-slump apparatus 38 mm high with at the top diameters of 57 mm and 19 mm at the bottom. Base plate (Glass/acrylic) available at extra cost
SURFACE ABRASION TESTER FOR CONCRETE & MORTAR BY ROTATING CUTTER METHOD - ASTM C944
Abrasion Resistance of Concrete can be used as a measure of its durability. Concrete surfaces may deteriorate in the long run due to abrasion caused by various factors such as sliding, scraping and abrasive materials carried by water etc. Supplied complete with Rotating Device, Agitation Paddle,Test Container and Abrasive Charges. Mould to prepare the sample available at extra cost

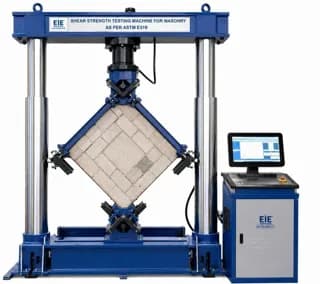

SHEAR STRENGTH TESTING MACHINE FOR MASONRY - ASTM E519
The Shear Strength Testing Machine for Masonry is a computer-controlled servo-hydraulic testing system designed for evaluating the diagonal tensile (shear) strength of masonry panels in accordance with ASTM E519. The machine provides accurate load application, and automated data acquisition through an integrated touchscreen control system, ensuring reliable and repeatable test results.
