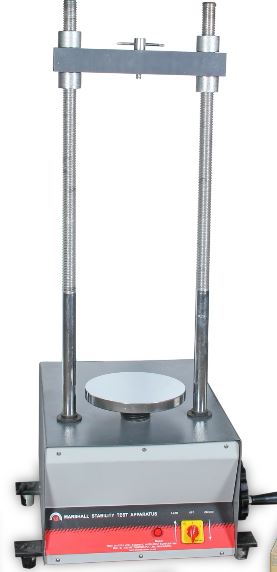

COMPACT LOADING FRAME - 100 KN

COMPACT LOADING FRAME - 100 KN

Model Number : TM-041-LM

It will be motorized with a uniform vertical movement of 50.8 mm/minute (2"/minute) suitable for operation 230 volts & 50 cycles single phase A.C. supply. It will be fixed with a reversible motor, reversing switch & limit switches to restrict the traveled capacity to 100 KN. As per ASTM D1559. Supplied without Marshal Mould, Marshal Rammer, Breaking Head Assembly, Compaction Pedestal, Extractor Plate, Load Transfer bar, Filter Paper, Proving Ring and Dial Gauge, which are available at an extra cost. Further details are mentioned in the long description.

Compliance Standards

ASTM D1559

Details

  1. It will be motorized with a uniform vertical movement of 50.8 mm/minute (2"/minute)
  2. Suitable for operation 230 volts & 50 cycles single phase A.C. supply.
  3. It will be fixed with a reversible motor, reversing switch & limit switches to restrict the traveled capacity to 100 KN.
  4. Weight : 100.800 Kgs Approx.
  5. Digital version with variable speed and PC software also available.
