APPARATUS FOR DETERMINATION OF MATTER INSOLUBLE IN TOLUENE - IS 1215
Determining the matter insoluble in toluene is essential for assessing the quality and purity of materials like tar, bitumen, and pitches. Insoluble materials can affect the flow, viscosity, and bonding characteristics of bitumen or tar. The apparatus measures the insoluble content and indicates the presence of impurities. As per IS:1215:2021.
DETERMINATION OF MINERAL MATTER (ASH) - AS PER IS 1217
As per IS:1217,AASHTO T 111. Supplied Complete with 50 ml silica crucible with Lid, Muffle furnace capable to attain temp. up to 900 deg C, Crucible tong and 150mm dia Glass Desiccator with desiccant.
DETERMINATION OF NAPTHALENE IN TAR & BITUMEN - AS PER IS : 1219
AS PER IS - 1219.
APPARATUS FOR DETERMINATION OF PHENOL-IS 1218
The apparatus consist of Phenol Flask, a Beaker of suitable size, Separating funnel with stopper, a Glass Thermometer of 0-100 deg C or similar range but without chemicals or reagents

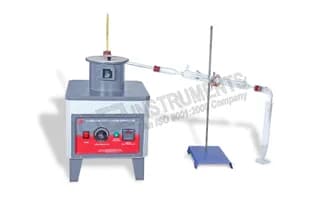

APPARATUS FOR DISTILLATION OF CUT BACK BITUMEN - IS 1213
The distillation of cutback asphalt, according to IS 1213 and ASTM D402, is a test to determine the proportions of volatile components in cutback asphalt by distilling off the volatile fractions at specified temperatures. This process helps to understand the composition and stability of the cutback asphalt in terms of the amount of volatiles present. Complete with one distillation flask of 500ml. capacity and one 100 ml. crow receiver Electrically heated model with Energy regulator.

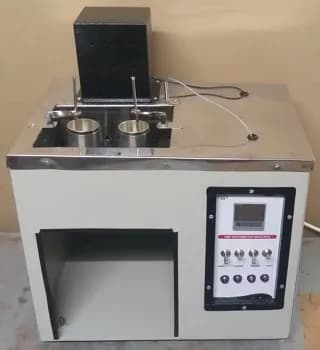

SAYBOLT VISCOMETER-WITH TWO TUBES
The Saybolt Viscometer is used to determine empirical measurement of Saybolt Viscosity of petroleum products at specified temperatures. The time it takes for a 60 ml sample to flow through a tube with a specified diameter (furol (3.150 mm) or universal (1.765 mm) ) is measured and reported in seconds. The viscometer can be used for temperatures between 25 and 50 °C.The viscometer includes waterbath, motorized stirrer, electric heater with digital temp.controller with control accuracy of ± 0.1°C. (The room temp. must be @ 20-21°C to achieve control accuracy) Refrigerated Model also available

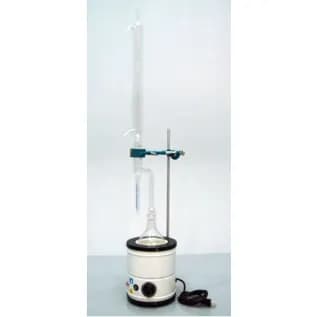

WATER CONTENT OF BITUMEN EMULSION - IS 1211
A reliable apparatus designed for precise moisture determination in tar and bitumen as per IS 1211 and IP 291 standards. Complete with a 500 ml heat-resistant flask, condenser, and a choice of 2 ml or 10 ml receiver.

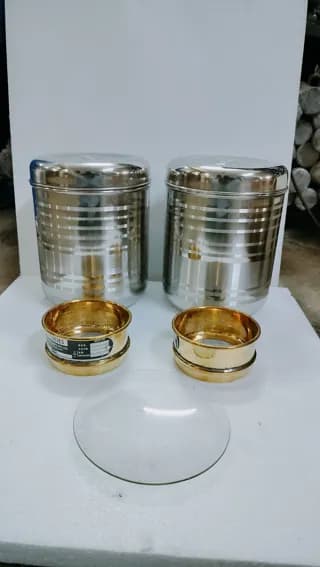

APPARATUS FOR DETERMINATION OF RESIDUE ON SIEVE
To determine the residue on the sieve as per IS:8887, the test involves assessing the fineness of materials by sieving them through a designated mesh sieve and quantifying the remaining material (residue). This test is essential in quality control processes to ensure that materials meet specified fineness and consistency requirements.
COLD BENDING TESTER FOR BITUMEN SHEETS
Used to determine flexibility and cracking resistance of bitumen sheets at low temperatures. Used to determine minimum bending temperature in cold environment.

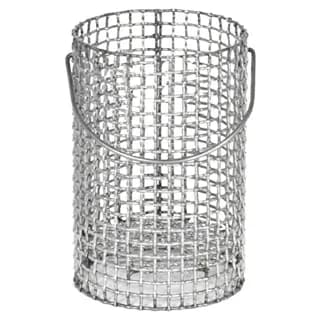

DENSITY BASKET AS PER ASTM D6390 - DRAIN DOWN TEST
Standard basket meeting the dimensions shown in Fig. 1 as per ASTM D6390 / as per IRC SP 79 2008. Dimension is mentioned in above mention code "annex-C" Page no. 16. The basket is constructed using standard 6.3 mm sieve cloth. Standard basket meeting the dimensions shown in Fig. 1. The basket is constructed using standard 6.3 mm sieve cloth as specified in Specification E 11. 108 ± 10.8 mm dia X 165 ± 16.5mm height. Basket bottom will be of 25mm ± 2.5mm height.
STORAGE STICKING TESTER - AS PER IS 13826 PART 3
Apparatus for the determination of storage sticking property of the Bitumen based felt. Storage sticking is the property of bitumen based felt due to which layers of felts kept together have tendency to stick. A chamber, suitably fitted with a thermostate, capable of maintaining a constant temperature of 55 ± 2°C or higher temperature as per the requirement of the particular type of the felt for 18 hours.

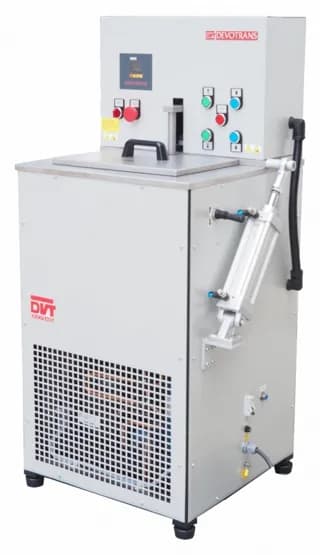

FRAASS BREAKING ASSEMBLY WITH ACCESSORIES AS PER IS 9381
As per IS:9381 and EN 12593. Supplied complete with standard accessories as detailed under. Please consider purchase of spares and optional accessories as per your best judgement. Please consult us in case of any clarifications. Advanced Automatic Fraass breaking point tester also available.

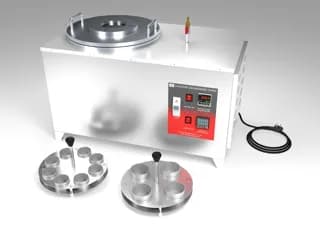

SAYBOLT VISCOMETER-WITH FOUR SAYBOLT TUBES
A Saybolt Viscometer with Four Saybolt Tubes, as per ASTM D88 and IS:3117-2019, measures the viscosity of petroleum products. It features four tubes for simultaneous testing, with results expressed in Saybolt Universal Seconds (SUS). This instrument ensures accurate viscosity measurement for quality control in the petroleum and lubricant industries.Electrically heated model complete with Four Saybolt Tubes and electrical control panel with all accessories. With 4 Nos. Saybolt Viscosity Flask but without optional accessories.
VIBRATING TABLE 3 FT X 1 FT WITH 3 SHELVES FOR VIBRATION TEST DURING TRANSPORTATION
This equipment is used for determination of vibration effect on digital controllers during transportation.

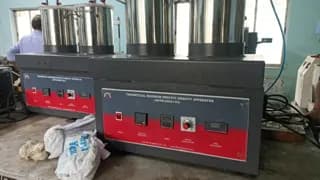

ASPHALT MIXER-THEORETICAL DENSITY METER-WITH VACUUM PUMP-WITH VIBRATING TABLE-WITH METAL CONTAINER
This equipment is used for determination of theoretical density of asphalt mixer by vacuum method for application such as asphalt mixer design, road condition investigation, calculation of porosity and compactness in road construction quality management.

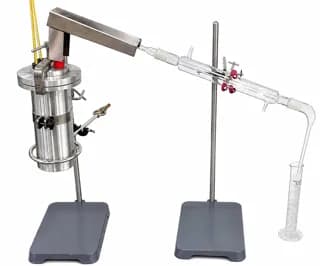

APPARATUS FOR DISTILLATION OF EMULSIFIED ASPHALT - (WITH ELECTRIC BURNER) - (ASTM D244, ASTM D6997) - WITH ACCESSORIES
Use of this set will allow the user to accurately determine the representative portion of residue in emulsified asphalts. Used to examine the asphalt emulsions composed principally of a semi-solid or liquid asphaltic base, water and an emulsified agent.
ABSOLUTE AND KINEMATIC VISCOSITY BATH-SEMI AUTOMATIC
As per IS: 1206 (Part II and III).Supplied complete with Viscosity bath with built in PLC,HMI and digital vacuum controller with Vacuum Pump -capable to maintain vacuum of 300 mm/Hg, Indian Make Vacuum Manning Viscometer No.12 and 13, Reverse flow Viscometer No.6 with certificate of constant and calibration certificate for Viscosity bath, Complete with instruction manual. Detailed Specification as mentioned in technical part mentioned below. Canon USA Make Glass U Tube Viscometer, Mercury Manometer, Silicon oil, silicon tubes etc. are available at extra cost

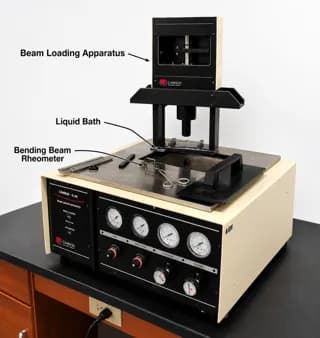

BENDING BEAM RHEOMETER
This instrument is made and designed as per ASTM D6648, BS EN 14771, AASHTO T313. Complete with PC and software but without air compressor and Bath fluid (available at extra cost)

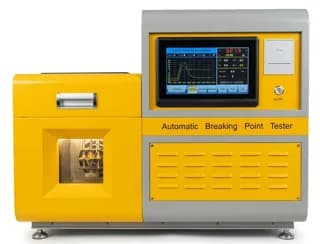

AUTOMATIC FRAASS BREAKING POINT TESTER
This instrument is used to determine the temperature which a bitumen tends to break rather to flow when cooled and stressed . It can do three tests at the same time in the same environment and calculate the average value.The cooling rate is controlled by computer. It is controlled by micro computer. The cooling rate is controlled automatically. It has automatically timing to bend samples.The test data is shown on the colored LCD and output on built-in printer. Supplied complete with Automatic Breaking Point Tester, Low temp.cyclic Thermostatic bath, Stainless steel sample piece(6 Nos.) and necessary rubber tubings. Other necessary Instruments Viz. Hot Plate, Furnace, Weighing Balance and solvents etc.

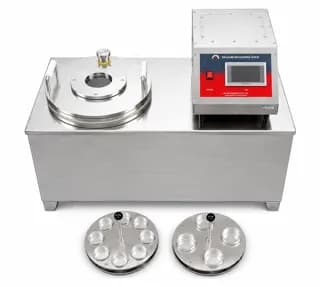

VACUUM DEGASSING OVEN
The Vacuum Degassing Oven (VDO) from ATS has been designed to degas pressure aged binder samples to precisely and accurately meet AASHTO R28-06 and ASTM D6521-05 standards.
VACUUM DEGASSING OVEN - WITH VACUUM PUMP & PLC, HMI CONTROL SYSTEM - ASTM D6521
The Vacuum Degassing Oven (VDO) from EIE has been designed to degas pressure aged binder samples to precisely and accurately meet AASHTO R28-06 and ASTM D6521-05 standards.
PAVEMENT INTENSITY TEST APPARATUS
Digital type with load cells LVDT with digital indicator.
