HYDRAULIC (KBR PRESS) - 40 TON - MANUAL
Complete Laboratory hydraulic press producing a force about 40 tones use to make high quality Pallets
MARSH CONE FUNNEL - WITH STAND AND MEASURING CYLINDER - FOR GROUT TEST - IS 14343
This cone is used to find out viscosity of slurry and like material. The marsh cone is 6 inch(150 mm) in diameter at the top and 12 inch(300 mm) long, and tapers to join a tube 2 inch long and 5 mm inside dia. The capacity of the funnel is 2000 cc. the top of the cone has a screen with 1.5 mm opening for screening out lumps.Time in seconds required to flow out 1000 cc of slurry from cone is measured as funnel viscosity of the material. Supplied without stop watch

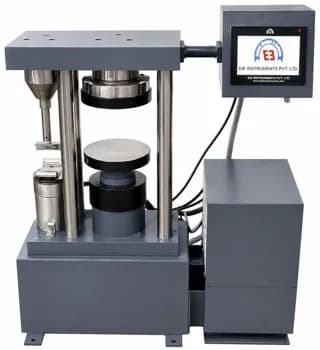

AUTOMATIC COMPRESSION TESTING MACHINE - 500 KN
This machine is essential for precise and efficient cement testing, ensuring compliance with industry standards critical to civil construction. It is widely used in construction projects and laboratories to validate the quality and compressive strength of Cement-concrete materials. Conforms to IS: 4031 (Part 6), EN 196-1, ASTM C109, ISO 679, BS 4550-3.4,JIS R 5201 and other international standards. Automatic Operation: Minimal user input required; automatic rapid piston approach, test speed adjustment, and motor stop after specimen failure.Adjustable pace rate (1 kN/sec to 10 kN/sec) with dual-stage pump for fast and precise execution. Robust Frame: High-stiffness welded frame with a heavy-duty spherical seat for accurate specimen alignment.PC software for two-way communication, result storage, and report printing.
FLOW CONE APPARATUS-EN 445-FOR MORTAR, MUD AND GROUT
The flow cone apparatus is used to determine the fluidity and workability of grout, particularly for prestressing ducts in post-tensioned structures. The test measures the time required for a specified volume of grout to flow through an orifice of a standardized cone. The measured flow time helps assess the consistency and suitability of the grout for application. Made of Stainless Steel 304. Supplied with 4 interchangeable (8, 9, 10 and 11 mm diameter) nozzles with fitting bush. Interchangeable nozzle 12.7 mm and 15mm available at Extra Cost.
J14 FUNNEL WITH STAND - WITH MEASURING CYLINDER
The J14 Funnel is used for measuring the flowability of grouts, mortars, and other fluid materials. It is similar to flow cone tests but typically designed for more fluid materials, especially in tunneling, grouting, and construction applications. As per EN 445, EN 934-6 , NF P18-507, JIS A 6204.
GROUT VOLUME CHANGE (MICROMETER BRIDGE SET)
The Grout Volume Change (Micrometer Bridge Set) conforms to ASTM C1090 standards for measuring grout volume changes. It includes a micrometer bridge, depth gauge, cylinder mould, and accessories, and is used to measure height changes due to hydration, settlement, evaporation, and other physical/chemical effects during hardening.
APPARENT BULK DENSITY OF UNPACKED MORTAR POWDER - CSTB 2435-
Bulk Density of Cement Apparatus is used for the measurement of the apparent density (bulk density) of powders and non-cohesive materials.
SLURRY SAMPLER - 50 MTR.WITH ROPE-BAILER
SAMPLE BAILER has a second ball check located at the top that permits the bailer to secure a sample from a specific depth without influence from the slurry above. Meets contract specifications for collecting slurry samples for testing physical drilling slurry properties.
HEAT OF HYDRATION APPARATUS - WITH DAQ AND PC CONNECTIVITY - IS 4031, IS 11262
Used to determine the heat of hydration of low heat Portland and hydraulic cement. The instrument is used for determining heat of hydration of cement by measuring difference between heat of solution of dry cement and heat of solution of a separate sample partially heated for 7 days & 28 days.
BULK DENSITY OF CEMENT APPARATUS
Bulk Density of Cement Apparatus is used for the measurement of the apparent density (bulk density) of powders and non-cohesive materials.
MORTAR MIXER WITH DIGITAL RPM INDICATOR - 4.75 LTR
The instrument is specially designed to prepare cement mortar for Strength Determination. It is used for mixing cement pastes, mortars and pozzolanas. It can also be used for uniform mixing of soils with additives such as lime, cement, etc. The machine is advance version that requited no changing of the gear. It will also show the current rpm.
MARSH CONE FUNNEL - WITH STAND AS PER IS 14343
etailed Specification as follows: This cone is used to find out viscosity of slurry and like material. The marsh cone is 6 inch(150 mm) in diameter at the top and 12 inch(300 mm) long, and tapers to join a tube 2 inch long and 5 mm inside dia. The capacity of the funnel is 2000 cc. the top of the cone has a screen with 1.5 mm opening for screening out lumps.Time in seconds required to flow out 1000 cc of slurry from cone is measured as funnel viscosity of the material. Supplied without stop watch
AIR JET SIEVING MACHINE - EIE-AIR-200
Supplied without air jet sieves, Vacuum system and Electronic weighing balance

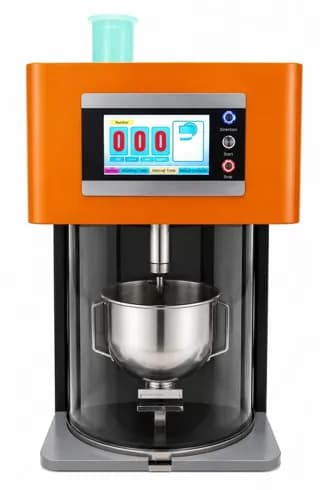

FULLY AUTOMATIC DIGITAL MORTAR MIXER - EN 196-1, EN 196-3 - 4.75 LTR
The Fully Automatic Digital Mortar Mixer is designed for the preparation of standard cement mortar prisms in accordance with EN 196-1, EN 196-3, IS 4031, and ASTM C451. It features a 5-liter nominal capacity, microprocessor-based control, and an integrated sand dispenser for accurate and repeatable mixing.

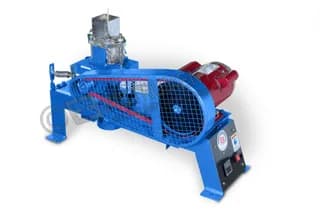

VIBRATING MACHINE WITH DIGITAL TIMER-
The machine shall be capable for compaction of cement mortar cubes as per IS: 4031 and designed as per Standard IS : 10080. The complete frame assembly consists of device to hold a 7.06 cm cube mould to feed the sample in the mould. The frequency of vibration is 12000 ± 400 R.P.M. Vibration per minute. Supplied complete with one 7.06 cm cube mould with DIGITAL Timer. Complete with One No. poking rod to meet IS: 10086 requirements. The electric motor will be of reputed make such as GODREJ/CROMPTON MOTOR.
