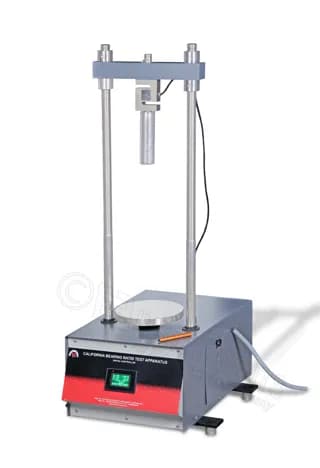

COMPACT CBR LOAD FRAME-TWO SPEED-DIGITAL-(BS 1377)-
Load frame, Motorized 5000 Kg (50 KN) capacity, With two rate of travel (1.0 & 1.27mm/min)
COMPRESSION TESTING MACHINE UN CONFINED CBR DIGITAL-
Single speed of 1.25/min. Working on 230 Volts AC single Phase

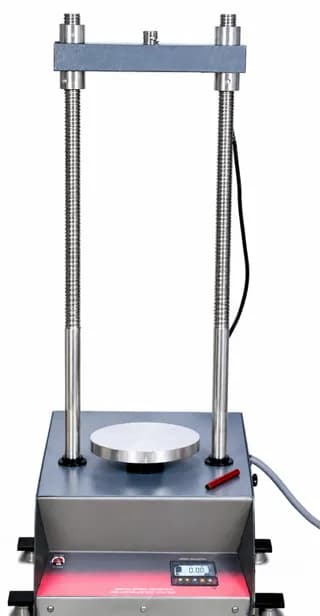

COMPACT CBR LOAD FRAME - SINGLE SPEED - DIGITAL - WITH SOFT WARE
Single speed of 1.25/min. Working on 230 Volts AC single Phase. The Load frame consist of BONVARIO ITALY make Geared Motor and Bronze Gears for long lasting performance. Further details as mentioned in the long description.

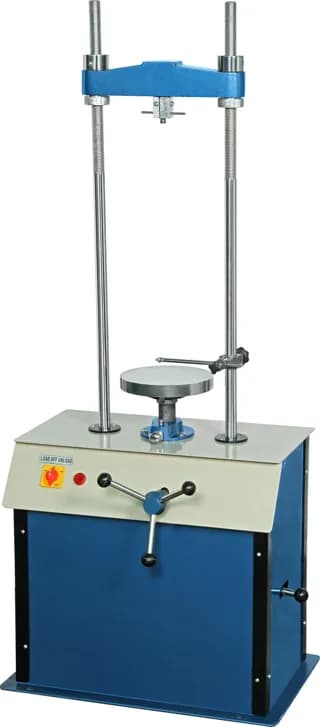

IS 2720, 9669 - ELECTRIC OPERATED LABORATORY CBR APPARATUS - WITH 25 KN PROVING RING
The machine feature a rigid two column frame with upper crossbeam, which can be adjusted in height and locked in position with locknuts. The drive force is provided by a mechanical jack housed in the base cabinet which also accommodates the motor and the electric panel. Complete with standard accessories as mentioned below. As per IS:2720 (Part XVI).
UNCONFINED COMPRESSION TESTER CUM CBR TESTER - DIGITAL WITH SOFT WARE
Load Frames are useful device employed for application of compression and penetration loads required for various tests such as unconfined compression test, Triaxial Shear test, California Bearing ratio test

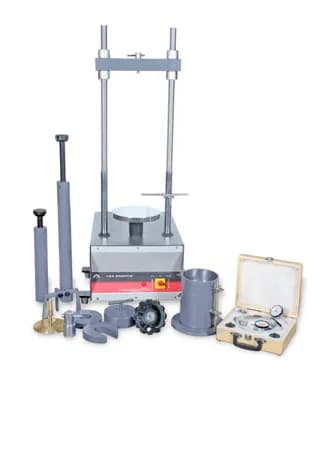

LABORATORY CBR APPARATUS-ELECTRICALLY OPERATED WITH 50 KN PROVING RING-ASTM D1883, AASHTO T193
This test method is used to evaluate the potential strength of sub‑grade, sub‑base, and base course material, including recycled materials for use in road and airfield pavements. The CBR value obtained in this test forms an integral part of several flexible pavement design methods.

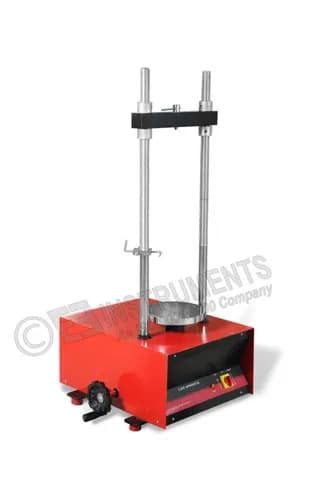

UNIVERSAL LOAD FRAME - DIGITAL - 50 KN-
The Universal load frame is a system designed for carrying out 3 different tests, mainly CBR Test, Unconfined Compression test and Marshal Stability test. The Load Frame is equipped with a Digital Speed indicator on which any pre-defined speed can be digitally set. There no gear and lever to mechanically adjust the loading speed. The Load can be measured either by a Proving ring or Digital Load Indicator . Similarly, the displacement can be measured by Dial Gauge or LVDT.Digital Universal Load indicator with LVDT and software are offered separately. Client can also use his own proving ring and dial gauge if he so desires. Cost of Load Frame only.
UNIVERSAL LOAD INDICATOR - MARSHAL - CBR - UCS
TOUCH SCREEN UNIVERSAL LOAD INDICATOR - CONTROLLER - can be used to conduct the marshal, CBR and UCS test. The indicator will come complete with load cell - 50 kN and LVDT - 25 mm.

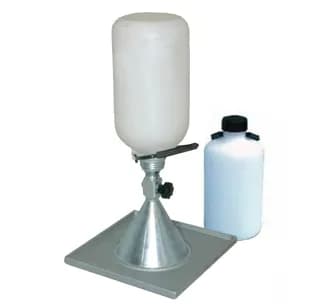

SAND CONE TEST APPARATUS-(ASTM D1556)
The Sand Cone Apparatus is used to determine the in-place density and unit weight of any soil that can be excavated to a stable condition with hand tools.

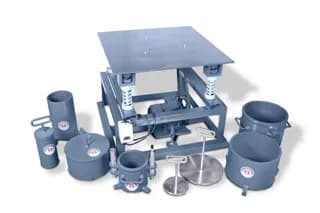

RELATIVE DENSITY APPARATUS-(ASTM D4253)
Relative density (also called density index) measures the compactness of cohesionless soils (sands, gravels). It indicates how close the soil is to its loosest or densest state, useful in foundation design, compaction control, and evaluation of liquefaction potential.
