PAVEMENT INTENSITY TEST APPARATUS
Digital type with load cells LVDT with digital indicator.

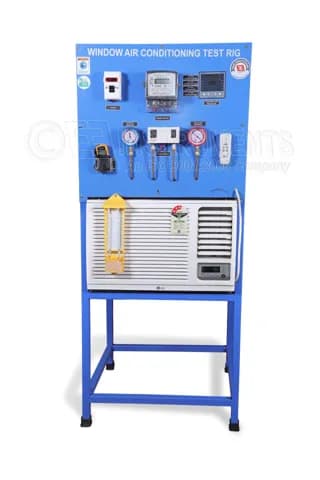

WINDOW AIR CONDITIONING TEST RIG-
Window air conditioner test rig. Capacity : 0.75 TR, Refrigerant : R 22. Detailed Specification as follows:
ELECTRODE DRYING BENCH OVEN - 25 KG
Drying & re-drying ovens for Electrodes and SAW flux provides uniform heating through well dispersed multiple heating elements. Thick glass wool thermal insulation ensures heat retention and efcient utilization of energy. User friendly controls with simple knobs for portable ovens and digital control panels & display for the bench and ux ovens reduce operator fatigue. The Flux ovens are designed for top loading and bottom dispensing with slag screen that acts as a sieve to lter out contaminants and to protect the heating elements.

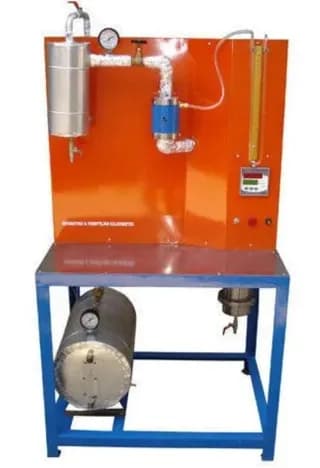

SEPARATING & THROTTLING CALORIMETER
SEPARATING CALORIMETER : - It consists of two concentric chambers, the inner chamber and the outer chamber, which communicates with each other through an opening at the top. As the steam discharges through the metal basket, which has a large number of holes, the water particles due to their heavier momentum get separated from the steam and collect in the chamber. The comparatively dry steam in the inner chamber moves up and then down aging through the annular space between the two chambers and enters the Throttling Calorimeter. THROTTLING CALORIMETER : - It consists a narrow throat (Orifice). Pressure and temperature are measured by pressure gauge and thermometer. The steam after throttling process passes through the heat exchanger and condensate is collected. Steam Generator is also provided to supply the saturated steam (Max.) at 2kg/cm2 pressure.

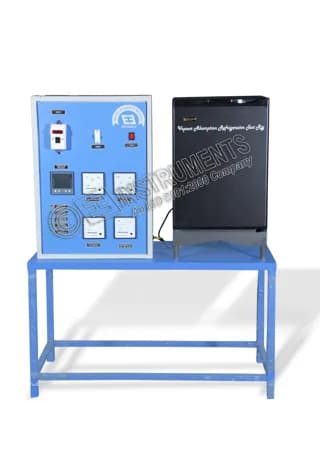

VAPOUR ABSORPTION TYPE REFRIGERATOR
"Vapour Absorption Refrigerator" earlier known as "Electrolux" refrigerator is an self contained refrigerator working on absorption technology. Detailed Specification as follows:

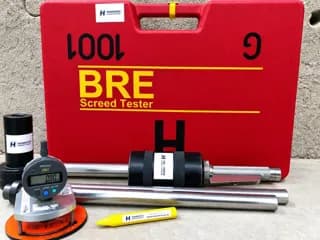

BRE SCREED TESTER WITHOUT DIAL GAUGE
The BRE Screed Tester is designed to measure the soundness of a sand and cement floor screed. The device consists of a 1 m long, cylindrical guide rod, along which an annular weight of 4kg (or 2kg) travels when released. At the bottom of the guide rod the weight strikes the collar of a case-hardened steel anvil which transmits the impact to the surface of the screed. Four successive impact blows on the same spot are sufficient to test the soundness of the screed. The depth of indentation is measured with an electric or mechanical depth gauge. At the end of taking readings, a number of statistical values are then calculated and printed from the data. Guidance is given on the use of the screed tester for testing floating screeds using a 2 kg annular weight in place of the 4 kg weight normally used.
PELTON WHEEL TURBINE TEST RIG - 5 HP
To conduct performance test on the given Pelton wheel turbine.
ICE PLANT TRAINER-
The Ice Plant Test Rig works on a simple Vapour Compression Refrigeration Cycle using environment-friendly refrigerants R134a or R404A. It enables students to observe the ice formation process and understand the working, performance, and controls of a vapour compression refrigeration system.

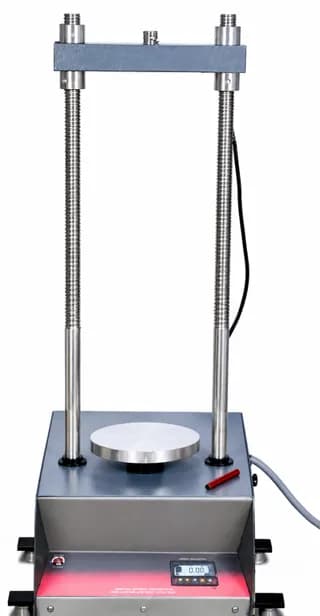

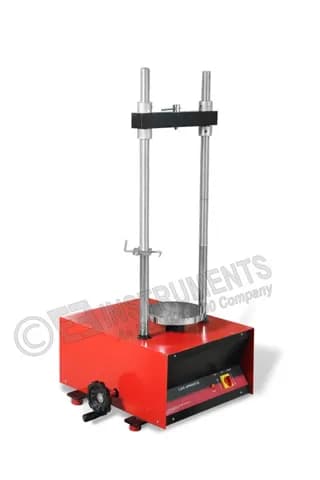

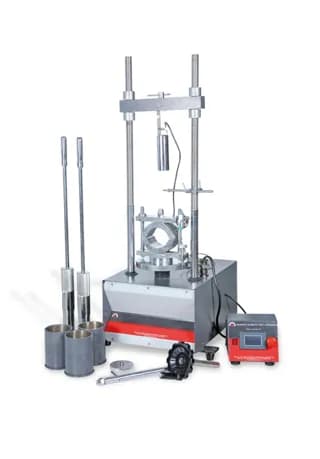

UNIVERSAL LOAD FRAME - DIGITAL - 50 KN-
The Universal load frame is a system designed for carrying out 3 different tests, mainly CBR Test, Unconfined Compression test and Marshal Stability test. The Load Frame is equipped with a Digital Speed indicator on which any pre-defined speed can be digitally set. There no gear and lever to mechanically adjust the loading speed. The Load can be measured either by a Proving ring or Digital Load Indicator . Similarly, the displacement can be measured by Dial Gauge or LVDT.Digital Universal Load indicator with LVDT and software are offered separately. Client can also use his own proving ring and dial gauge if he so desires. Cost of Load Frame only.
UNIVERSAL LOAD INDICATOR - MARSHAL - CBR - UCS
TOUCH SCREEN UNIVERSAL LOAD INDICATOR - CONTROLLER - can be used to conduct the marshal, CBR and UCS test. The indicator will come complete with load cell - 50 kN and LVDT - 25 mm.

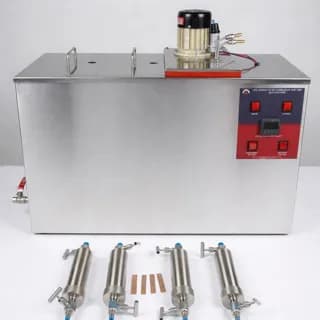

LPG COPPER STRIP CORROSION TEST APP-DIGITAL-ASTM D 1838
The apparatus for the ASTM D1838 copper corrosion test requires a specialized temperature-controlled water bath and pressure test cylinders, along with essential accessories for preparing and evaluating copper strips.

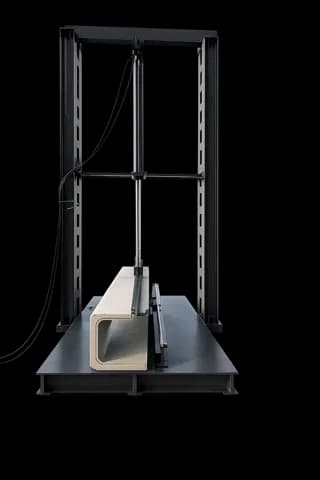

BENDING STRENGTH TEST APARATUS - FOR CABLE DUCT AND COVERS
The bending strength of concrete culvert. Electro-hydraulic Design, quite and vibration free operation. PC connectivity with software available at extra cost.
DIGITAL SUB ZERO TEMP BATH
A sub ‘0’ Temperature bath is an extra accessories of Charpy Impact Machine. This unit is small and compact can be placed adjacent to pendulum Impact Machine while conducting Charpy Impact testing machine at temp 0°C to (-) 120°C.
GROUT SPREAD METHOD-EN 445
The grout spread test measures the fluidity of thixotropic grouts. The fluidity is measured by the diameter of the circle of grout spread on a smooth plate after a fixed period.

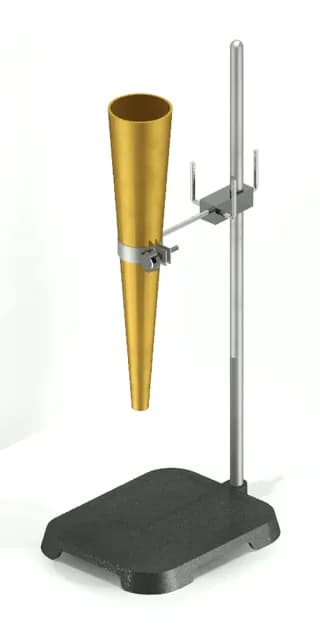

J14 FUNNEL WITH STAND - BRASS
Dimensions: Top Inner diameter : 70 +/- 1 mm, Bottom Inner Diameter : 14 +/- 0.3mm, Height : 392mm

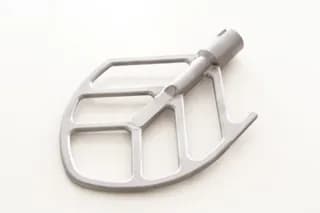

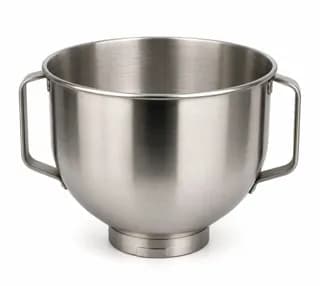

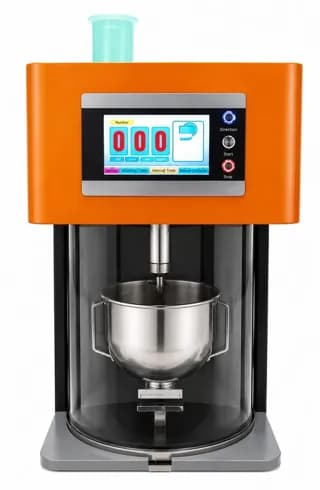

FULLY AUTOMATIC DIGITAL MORTAR MIXER - EN 196-1, EN 196-3 - 4.75 LTR
The Fully Automatic Digital Mortar Mixer is designed for the preparation of standard cement mortar prisms in accordance with EN 196-1, EN 196-3, IS 4031, and ASTM C451. It features a 5-liter nominal capacity, microprocessor-based control, and an integrated sand dispenser for accurate and repeatable mixing.

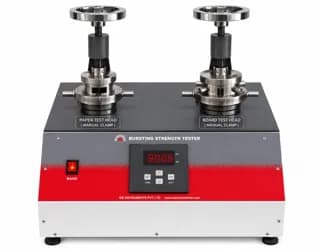

BURSTING STRENGTH TESTER-DUAL HEAD FOR PAPER AND BOARD-10 AND 50 KG PER CM2-DIGITAL ECONOMY MODEL
FOR Corrugated Paper and Corrugated Box Testing

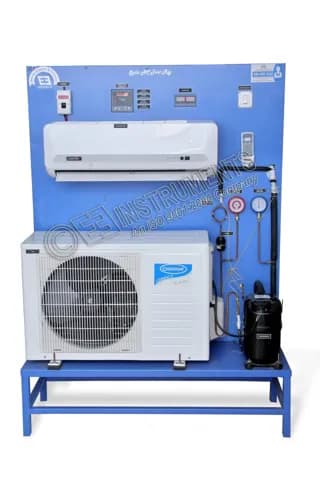

SPLIT AC TRAINER-
The Split Air Conditioning Test Rig unit is required to conduct experiments and demonstrate the process of cooling of atmospheric air. The unit will be fitted with all instruments facilities so that temperature, pressure etc. may be measured at different points in the Split air conditioning system.

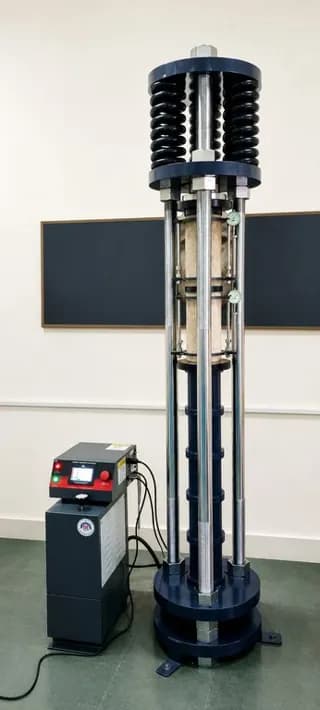

CREEP TESTING MACHINE FOR CONCRETE- 1000KN - ASTM C512
The machine is designed to determine the creep of the concrete cylindrical mold subject to sustain longitudinal compressive load as per ASTM C 512. The test method is limit to concrete in which the max aggregate size does not exceed 50 mm. The machine will be supplied with DAQ for the stain gauge and 10 pieces of stain gauge of Type -BF120-60mm,Resistance- 120ohm ,lead wire -25-30mm. It will also supplied with EPOXY ADHESIVE to paste of the sample and cable to solder the stain gauges.
SHAPE TEST APPARATUS-
Consisting of Length gauge and Flakiness Gauge sdfor shape test of aggregate
