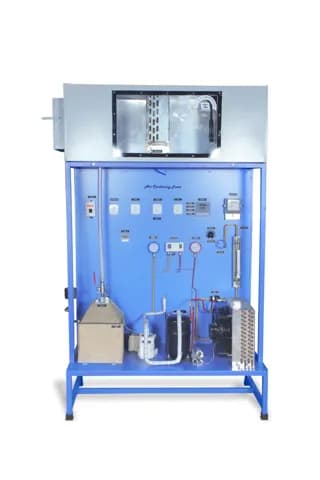

AIR CONDITIONING TEST RIG-
Window air conditioner test rig. Capacity : 0.75 TR, Refrigerant : R 22. Detailed Specification as follows:

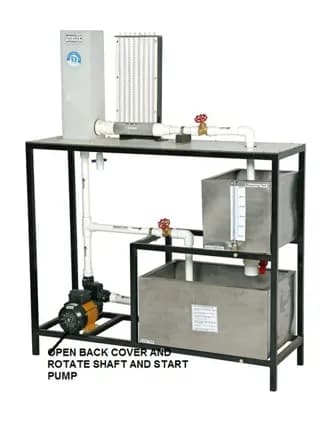

BERNOULLI'S THEOREM APPARATUS-
Bernoulli's principle named after the Dutch Swiss mathematician Daniel Bernoulli is one of the most widely used theorem in the field of fluid dynamics. The apparatus consists of converging diverging circular test section. Static Pressure tapings are provided across the length of the section and velocity head is measured with reading for various flow rates. Detailed Specification as mention in following page.
DIGITAL VACCUM CONTROL SYSTEM
vacuum controller controls the system vacuum through a relay, thus is compatible with all vacuum systems. It includes: Digital control panel Vacuum transmitter (0 to 760 mm hg)(baumer or similar make), Vacuum controller, Supplied without Vacuum Pump

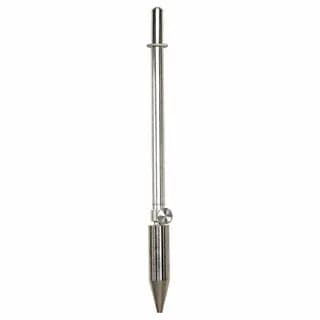

PENETROMETER FOR BATTERY PASTE
Battery Paste Penetrometer with cone, which has a hardened steel tip with a special plunger. Total needle weight is 60g ±.050g.

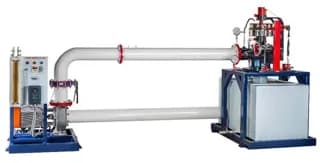

FRANCIS TURBINE TEST RIG - 5 HP
The present set up consists of a runner. The water is fed to the turbine by means of Centrifugal pump, radially to the runner. The runner is directly mounted on one end of a central S.S. shaft and the other end connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the runner. The runner assembly is supported by thick cast iron pedestal. Load is applied to the turbine with the help of brake arrangement so that the efficiency of the turbine can be calculated. A draught tube is fitted on the outlet of the turbine. The test set up is complete with guide mechanism. Pressure and Vacuum gauges are fitted at the inlet and outlet of the turbine to measure the total supply head of the turbine. Detailed Specification as follows:

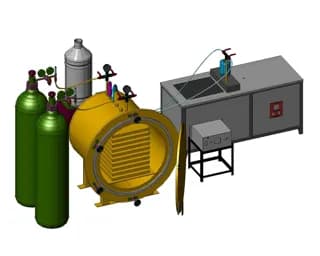

CO2 CURING CHAMBER FOR 10 SAMPLE OF 300 X 300 X 20 MM
Steam curing of concrete blocks is an energy extensive process and contributes to a significant portion of the block production cost. CO2 curing of concrete blocks consumes CO2, reduces energy consumption and produces dimensionally more stable products. This study investigated the strength development and weathering properties of steam- and CO2-cured full size lightweight concrete blocks.
